Pangenome (Minigraph-Cactus)

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.13. Desktop beta builds are coming soon.

We build a pangenome graph of five E. coli strains with Minigraph-Cactus and turn its outputs into JBrowse tracks on the K12 genome. One cactus-pangenome run writes the graph, a VCF, an odgi file, a HAL alignment and short-read indexes, and we:

load synteny, variants, a whole-genome alignment (MAF), depth and per-strain presence as tracks
map the reads of an isolate outside the graph through it
index the graph and draw it as a track

Experimental

The graph view is a beta plugin. We welcome your feedback.

Prerequisites

docker or singularity, for the cactus image, which includes odgi, halSynteny, hal2maf, vg and samtools
htslib (bgzip, tabix) and python3
node, for the JBrowse CLI
the GraphGenomeView plugin, for drawing the graph as a graph. In your own JBrowse, install it from the plugin store
gfa-to-tabix 0.12.0 or later and gfatools, for indexing the graph
for the whole build: the NCBI datasets CLI, bedGraphToBigWig (UCSC kentUtils), samtools, unzip and wget

On Debian/Ubuntu, apt install samtools tabix unzip wget python3 covers five of those; cargo install gfa-to-tabix installs gfa-to-tabix, bioconda packages gfatools, and datasets and bedGraphToBigWig are each a single-binary download.

Where the data comes from

Show full URLs

The five E. coli RefSeq assemblies come from the NCBI datasets CLI by accession. K12 is the --reference backbone the other four align onto.

The build script takes these files from their URLs, so there is nothing to download by hand.

Read by URL (no download needed)

the graph's segments, tabix-indexed, which the graph track below reads: jbrowse.org/…/ecoli_cactus.segs.bed.gzhttps://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus.segs.bed.gz
the graph's links: jbrowse.org/…/ecoli_cactus.links.bed.gzhttps://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus.links.bed.gz

Building the graph with cactus-pangenome

Minigraph-Cactus (cactus-pangenome) builds a pangenome graph reference-first. minigraph lays down a backbone from the reference you pick, and Cactus aligns every other sample onto it and normalizes the result into a graph. It takes a seqFile: one name<TAB>path line per sample.

cat > seqfile.txt <<'EOF'
K12     K12.fa
Sakai   Sakai.fa
CFT073  CFT073.fa
NCTC86  NCTC86.fa
IAI39   IAI39.fa
EOF

Contigs keep their plain names here (chr). Cactus applies PanSN sample#haplotype#contig naming to the graph internally.

Every step runs in the same cactus image (Cactus also ships a binary release for a machine with no container runtime), so wrap the docker run once:

in_cactus() {
  docker run --rm -u "$(id -u):$(id -g)" -w /data -v "$PWD":/data \
    quay.io/comparative-genomics-toolkit/cactus:v3.2.1 "$@"
}

Under singularity, singularity exec --bind "$PWD":/data --pwd /data docker://<image> replaces the wrapper body. The build script picks the runtime off PATH.

--reference K12 makes K12 the minigraph backbone and the path every output is decomposed against:

in_cactus cactus-pangenome /data/js /data/seqfile.txt \
  --outDir /data/mc --outName ecoli --reference K12 \
  --vcf --gfa --gbz --odgi --viz --draw --giraffe --consCores 8

/data/js is the Toil job store, and must not already exist on a fresh run.
--outName ecoli prefixes every output file.
--vcf deconstructs the graph into the variants track's input.
--odgi writes the .og that the depth and presence tracks read.
--viz writes the odgi raster shown at the end.
--giraffe writes the indexes the read-mapping section needs (mc/ecoli.d2.gbz and its .dist/.min/.zipcodes), built over the graph filtered to sequence at least two haplotypes have.

Load the genomes

Every projection is a track on a strain's assembly, and each strain's FASTA holds one sequence named chr. We'll add K12, the reference the projections land on, from a bgzip-compressed, indexed FASTA:

Config file

Goes in the assemblies array of config.json. See Assemblies.

{
  "name": "K12",
  "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.fa.gz"
}

CLI (add-assembly)

jbrowse add-assembly https://jbrowse.org/demos/ecoli_pangenome/K12.fa.gz \
  --name K12

JBrowse Desktop

In JBrowse Desktop, Open new genome on the start screen (or File → Open genome... in a session), then Open from a URL and paste, one per line:

https://jbrowse.org/demos/ecoli_pangenome/K12.fa.gz
https://jbrowse.org/demos/ecoli_pangenome/K12.fa.gz.fai
https://jbrowse.org/demos/ecoli_pangenome/K12.fa.gz.gzi

JBrowse reads the format off the file name. Then fill in:

Genome name: K12

Sakai, CFT073, NCTC86 and IAI39 load the same way, one assembly per strain, named as in the assemblyNames of the tracks below.

Synteny between all five strains (halSynteny)

halSynteny reads the HAL's base-level alignment and emits synteny blocks per genome pair as PSL with no sample tag in its sequence names, so the build script runs it for all ten pairs and converts each to PAF with PanSN sample#0#chr names.

Index the combined PAF so a range query fetches only the region in view:

jbrowse make-pif ecoli_cactus_ava.paf   # -> ecoli_cactus_ava.pif.gz (+ .tbi)

Load it with an MultiGenomeIndexedPAFAdapter, whose PanSN sample# prefix on every record is how it maps a record to its strain:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_cactus_ava",
  "name": "MC graph: all-vs-all synteny (halSynteny)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "MultiGenomeIndexedPAFAdapter",
    "uri": "ecoli_cactus_ava.pif.gz",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}

CLI (add-track)

jbrowse add-track ecoli_cactus_ava.pif.gz \
  --trackId ecoli_cactus_ava \
  --name "MC graph: all-vs-all synteny (halSynteny)" \
  --assemblyNames K12,Sakai,CFT073,NCTC86,IAI39 \
  --adapterType MultiGenomeIndexedPAFAdapter \
  --load copy

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_cactus_ava",
  "name": "MC graph: all-vs-all synteny (halSynteny)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "MultiGenomeIndexedPAFAdapter",
    "uri": "ecoli_cactus_ava.pif.gz",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}

ecoli_cactus_ava.pif.gz is relative to a config.json. Replace it with its URL or its path on this computer.

That shows it in the linear view. For the synteny view, open Add → Linear synteny view, pick the track under Quick start, and click Launch.

To stack the five strains, a linear synteny view takes one panel per strain and names the track once in tracks, which puts it on every band. Put this in the session's views, or use Add → Linear synteny view, whose Quick start fills in a row per assembly the track lists.

{
  "type": "LinearSyntenyView",
  "views": [
    { "assembly": "K12" },
    { "assembly": "Sakai" },
    { "assembly": "CFT073" },
    { "assembly": "NCTC86" },
    { "assembly": "IAI39" }
  ],
  "tracks": ["ecoli_cactus_ava"],
  "minAlignmentLength": 10000,
  "levelHeights": [110, 110, 110, 110],
  "color": { "field": "strand" }
}

In grammar-of-graphics terms, color is a color scale that maps each ribbon's strand to red where the two strains run the same way and blue where one is inverted against the other.

The Minigraph-Cactus graph's synteny projection: five strains stacked K12 to IAI39, a halSynteny ribbon between each adjacent pair, colored by strand. The top three bands run red throughout, and IAI39's large inversions are the blue ribbons crossing the bottom one.

Variants against K12 (vg deconstruct)

--vcf decomposes the graph against K12 with vg deconstruct, genotyped across the other four strains. Its CHROM is already chr, so the .gz and .tbi Cactus wrote load unchanged as a VariantTrack with the matrix display, one column per variant and one row per sample:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "VariantTrack",
  "trackId": "ecoli_cactus_variants",
  "name": "MC graph: pangenome variants (vs K12)",
  "uri": "mc/ecoli.vcf.gz",
  "assemblyNames": ["K12"],
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "unit": "haplotype"
    }
  ]
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "ecoli_cactus_variants",
  "name": "MC graph: pangenome variants (vs K12)",
  "uri": "mc/ecoli.vcf.gz",
  "assemblyNames": ["K12"],
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "unit": "haplotype"
    }
  ]
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "VariantTrack",
  "trackId": "ecoli_cactus_variants",
  "name": "MC graph: pangenome variants (vs K12)",
  "uri": "mc/ecoli.vcf.gz",
  "assemblyNames": ["K12"],
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "unit": "haplotype"
    }
  ]
}

mc/ecoli.vcf.gz is relative to a config.json. Replace it with its URL or its path on this computer.

Each strain is one haplotype, so unit: "haplotype" draws one row per strain, colored by that strain's allele. The multi-sample variant track guide covers columns versus genomic positions, the genotype colors, and clustering samples by genotype.

vg deconstruct writes a record per snarl (vg's word for a bubble) at every nesting level, so wide records paint over finer ones. cactus-pangenome prunes that tree with vcfbub by default; --vcfbub 0 turns that off, and --vcfwave realigns the remaining records into primitive variants.

Whole-genome alignment onto K12 (MAF)

The MAF comes out of mc/ecoli.full.hal. hal2maf --refGenome K12 roots every block on K12, and the rows come out as K12.chr, Sakai.chr, and so on, the sample.contig naming the MAF display splits species on:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/maf_to_bed.py
in_cactus hal2maf --refGenome K12 --noAncestors /data/mc/ecoli.full.hal /data/ecoli_cactus.maf
python3 maf_to_bed.py ecoli_cactus.maf ecoli_cactus.maf.bed
bgzip ecoli_cactus.maf.bed
tabix -p bed ecoli_cactus.maf.bed.gz

maf_to_bed.py writes one line per block, which a MafTabixAdapter reads. The streaming maf2bed converts this MAF too; see producing the tabix BED.

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "MafTrack",
  "trackId": "ecoli_cactus_maf",
  "name": "MC graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
    "uri": "ecoli_cactus.maf.bed.gz"
  }
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "MafTrack",
  "trackId": "ecoli_cactus_maf",
  "name": "MC graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
    "uri": "ecoli_cactus.maf.bed.gz"
  }
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "MafTrack",
  "trackId": "ecoli_cactus_maf",
  "name": "MC graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
    "uri": "ecoli_cactus.maf.bed.gz"
  }
}

ecoli_cactus.maf.bed.gz is relative to a config.json. Replace it with its URL or its path on this computer.

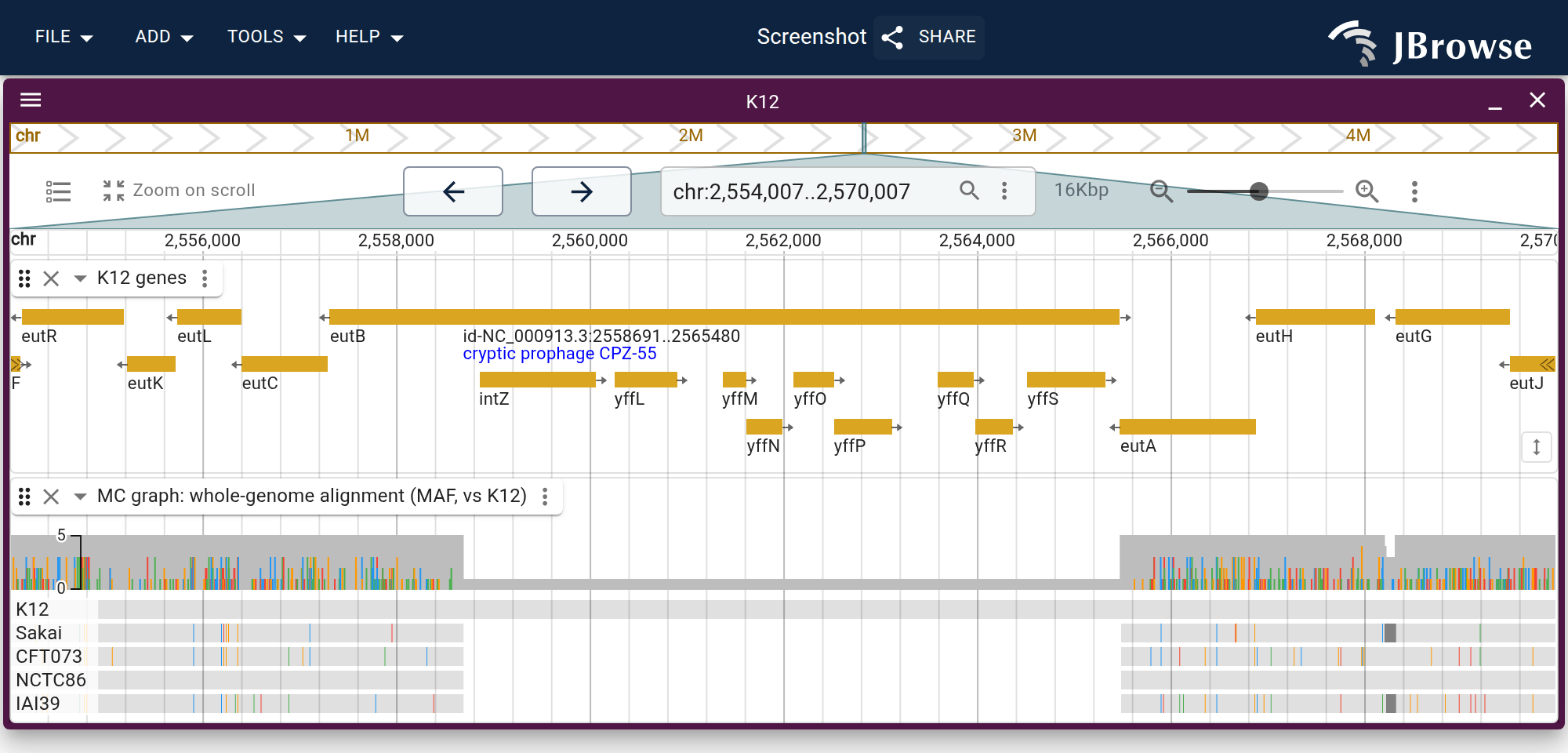

The Minigraph-Cactus HAL projected onto K12 as a MAF: the coverage band on top, then one row per strain, colored where each differs from K12. The four non-K12 rows stop at the edges of the cryptic prophage CPZ-55, which only K12 has.

A row with no colored columns shares its sequence with K12, and a row that stops has no alignment to K12 there. The coverage band tells the two apart.

samples names the rows and fixes their order. To order them by shared graph content instead, build a tree from odgi similarity and point nhLocation at it, as the pggb tutorial's MAF track does:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/odgi_similarity_to_newick.py
# -D '#' -p 1: group the paths by sample, the first field of each PanSN name
in_cactus odgi similarity -i /data/mc/ecoli.full.og -D '#' -p 1 > ecoli_cactus_similarity.tsv
python3 odgi_similarity_to_newick.py ecoli_cactus_similarity.tsv ecoli_cactus.nh

Pangenome depth and per-strain presence

odgi depth counts how many paths traverse the graph under each K12 base, and odgi pav splits that per strain. Both run over mc/ecoli.full.og in 500 bp windows of K12's path, which Cactus names K12#0#chr:

# the windows, and the reference length bedGraphToBigWig needs
reflen=$(awk '!/^>/ { c += length($0) } END { print c }' K12.fa)
printf 'chr\t%s\n' "$reflen" > chrom.sizes
awk -v p="K12#0#chr" -v len="$reflen" -v w=500 \
  'BEGIN { for (s = 0; s < len; s += w) { e = s + w; if (e > len) e = len
           print p "\t" s "\t" e } }' > depth_windows.bed

in_cactus odgi depth -i /data/mc/ecoli.full.og -b /data/depth_windows.bed |
  awk -v p="K12#0#chr" -v OFS='\t' '$1 == p && $4 + 0 == $4 { print "chr", $2, $3, $4 }' |
  sort -k1,1 -k2,2n > ecoli_cactus_depth.bedgraph
bedGraphToBigWig ecoli_cactus_depth.bedgraph chrom.sizes ecoli_cactus_depth.bw

Each other strain's path name ends in a subpath tag (Sakai#0#chr#0), so the per-strain filter matches the sample prefix:

in_cactus odgi pav -i /data/mc/ecoli.full.og -b /data/depth_windows.bed > pav.tsv
for strain in Sakai CFT073 NCTC86 IAI39; do
  awk -F'\t' -v OFS='\t' -v s="$strain" \
    '$5 ~ "^" s "#" && $6 + 0 == $6 { print "chr", $2, $3, $6 }' pav.tsv |
    sort -k1,1 -k2,2n > "pav_${strain}.bedgraph"
  bedGraphToBigWig "pav_${strain}.bedgraph" chrom.sizes "ecoli_cactus_pav_${strain}.bw"
done

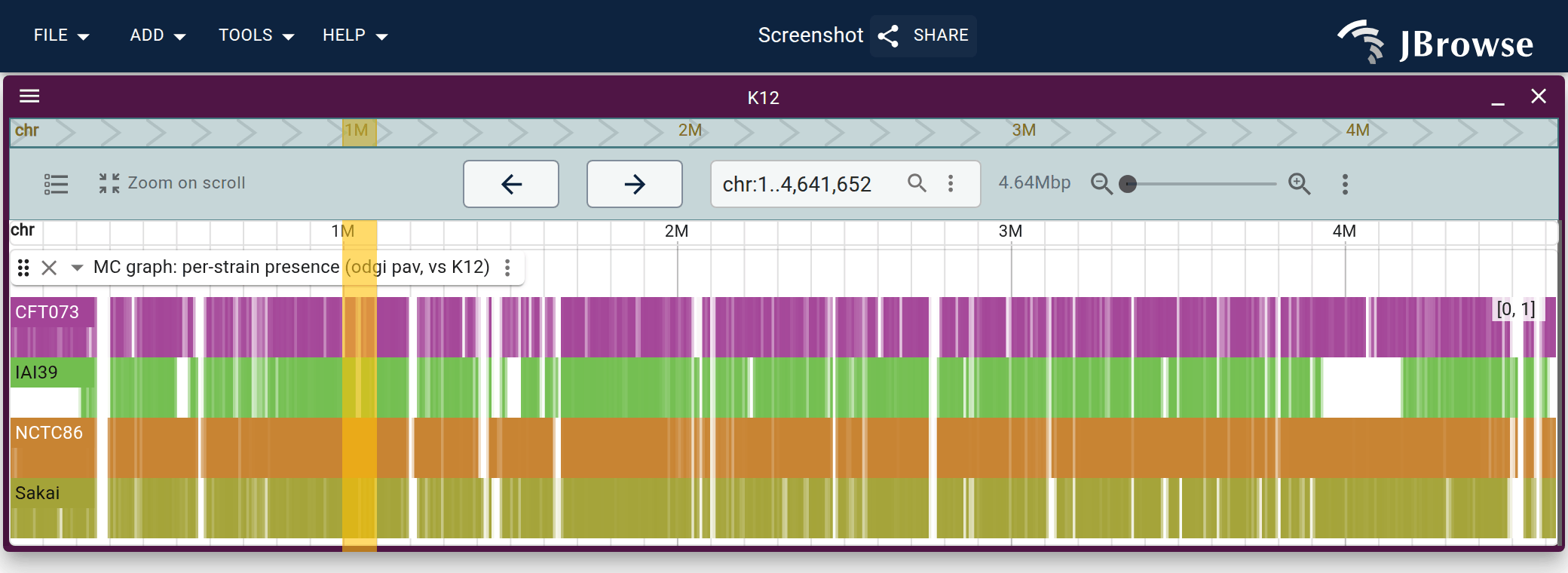

Each strain's presence bigWig loads as one row of a MultiQuantitativeTrack, the pggb page's presence track with ecoli_cactus_pav_ in each uri.

Depth counts path steps, so a repeat the graph folded onto one run of nodes reads above the strain count. seqwish, pggb's graph builder, folds the rRNA copies together; the reference-first graph keeps them apart.

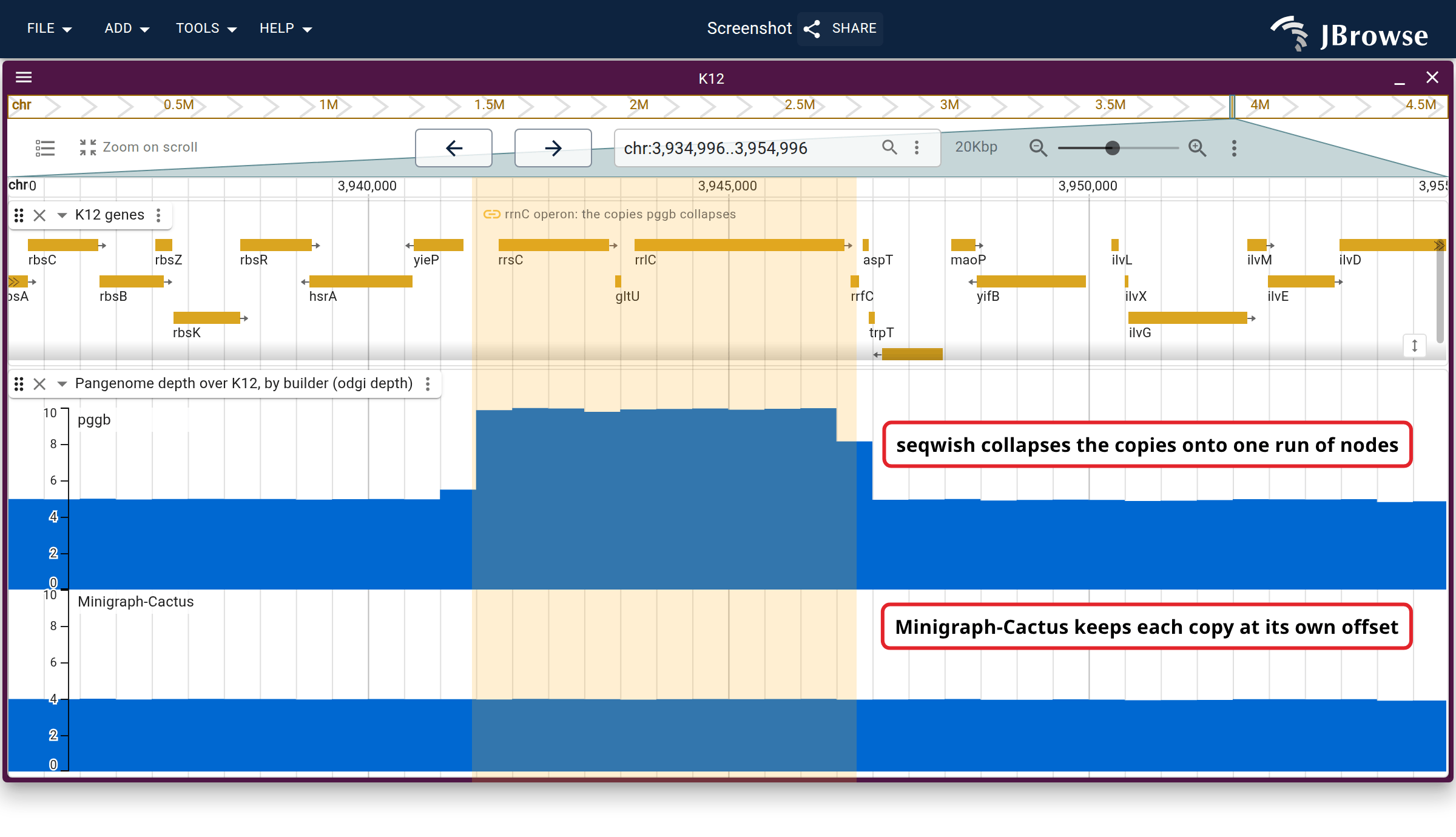

To compare the two builders, load both depth curves as rows of one track on a fixed axis, and type chr:3,935,000-3,955,000, the rrnC operon (a ribosomal RNA gene copy):

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "MultiQuantitativeTrack",
  "trackId": "ecoli_depth_by_builder",
  "name": "Pangenome depth over K12, by builder (odgi depth)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "pggb",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_depth.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "Minigraph-Cactus",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus_depth.bw"
      }
    ]
  },
  "displayDefaults": { "scales": { "y": { "domainMin": 0, "domainMax": 10 } } }
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "MultiQuantitativeTrack",
  "trackId": "ecoli_depth_by_builder",
  "name": "Pangenome depth over K12, by builder (odgi depth)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "pggb",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_depth.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "Minigraph-Cactus",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus_depth.bw"
      }
    ]
  },
  "displayDefaults": { "scales": { "y": { "domainMin": 0, "domainMax": 10 } } }
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "MultiQuantitativeTrack",
  "trackId": "ecoli_depth_by_builder",
  "name": "Pangenome depth over K12, by builder (odgi depth)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "pggb",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_depth.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "Minigraph-Cactus",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus_depth.bw"
      }
    ]
  },
  "displayDefaults": { "scales": { "y": { "domainMin": 0, "domainMax": 10 } } }
}

odgi depth over the banded rrnC operon, the same command over the same K12 windows against each builder's graph, on one fixed axis. The pggb row doubles over the operon and the Minigraph-Cactus row does not move.

Mapping a new isolate through the graph

We'll map the short reads of a sample outside the graph through the whole pangenome and project the result onto K12. A read that follows another strain's path through a variable region has no mismatches or soft clips and lands at that region's K12 coordinates. A read over sequence K12 lacks has no K12 coordinate and stays unmapped.

--giraffe wrote the indexes during the build. vg giraffe emits a GAM, and vg surject projects it onto one path as a BAM. The reads are E. coli KTa004 (ENA DRR063408, Illumina MiSeq), a strain the graph has never seen:

# -Z/-d/-m/-z are the graph and the three indexes --giraffe built; -f takes
# the paired FASTQs, one flag per mate; -p shows progress
in_cactus vg giraffe -p \
  -Z /data/mc/ecoli.d2.gbz -d /data/mc/ecoli.d2.dist \
  -m /data/mc/ecoli.d2.shortread.withzip.min -z /data/mc/ecoli.d2.shortread.zipcodes \
  -f /data/reads/sub_1.fastq.gz -f /data/reads/sub_2.fastq.gz > mapped.gam

# -x is the graph the GAM was mapped against; -b writes BAM instead of GAM;
# -p is the path to surject onto, so the BAM's one reference sequence is that
# PanSN name; -N/-R set the sample name and read group on every read
in_cactus vg surject -x /data/mc/ecoli.d2.gbz -b -p K12#0#chr \
  -N KTa004 -R KTa004 /data/mapped.gam > mapped.raw.bam

The BAM's one reference sequence is the PanSN path name, which matches no assembly. Rename it to the assembly's refName (chr) in the header, drop the unmapped reads, then sort and index:

samtools view -H mapped.raw.bam | sed 's|SN:K12#0#chr|SN:chr|' > reads_hdr.sam
samtools reheader reads_hdr.sam mapped.raw.bam > reads_reheader.bam
samtools view -b -F 4 reads_reheader.bam > reads_mapped.bam
samtools sort -o ecoli_cactus_reads.bam reads_mapped.bam
samtools index ecoli_cactus_reads.bam

The build script also subsamples the reads. The result loads as an ordinary alignments track:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "trackId": "ecoli_cactus_reads",
  "name": "KTa004 reads mapped through the graph (vs K12)",
  "uri": "ecoli_cactus_reads.bam",
  "assemblyNames": ["K12"]
}

CLI (add-track)

jbrowse add-track ecoli_cactus_reads.bam \
  --trackId ecoli_cactus_reads \
  --name "KTa004 reads mapped through the graph (vs K12)" \
  --assemblyNames K12 \
  --load copy

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track... and, in Add a track from file or URL, enter:

Main file: ecoli_cactus_reads.bam

Click Next. JBrowse reads the adapter and track type off the file name. Then fill in:

Track name: KTa004 reads mapped through the graph (vs K12)
Assembly: K12

Click Add.

ecoli_cactus_reads.bam is relative to a config.json. Replace it with its URL or its path on this computer.

vg giraffe rewrites ecoli.d2.dist as it runs, leaving it newer than the .min and .zipcodes built from it, so a second run refuses to start. touch the two derived files before re-mapping.

Drawing the graph as a graph

The graph genome view plugin draws the graph as a track of the linear view. Pangenome (hosting your own graph) covers installing the plugin and the one command that indexes a graph for it.

Indexing the graph

cactus-pangenome also wrote mc/ecoli.sv.gfa.gz, the graph its minigraph stage built. This rGFA of the structural variation states each segment's place on a genome in SN/SO/SR tags, so gfa-to-tabix build indexes it with no further arguments:

# gfa-to-tabix build runs gfatools for the bubbles, so it has to be on PATH
gfa-to-tabix build mc/ecoli.sv.gfa.gz -o ecoli_cactus_sv

The command writes the segments and links, the bubbles, a coarse tier (one node per bubble), the allele inventory (one row per alternative path), ecoli_cactus_sv.config.json, whose graph track names the tier under coarse, and ecoli_cactus_sv.graph.json, from which Add pangenome graph track picks up the tier.

The figures below draw the base-level graph, where every SNP is a bubble. That GFA has no rGFA tags, so --reference makes the command place segments by following the reference's path lines:

gfa-to-tabix build mc/ecoli.gfa.gz -o ecoli_cactus --reference K12

Without --snarls the command writes no bubble file. Our hosted copy of the index loads as one GraphTrack at the shared prefix:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "GraphTrack",
  "trackId": "ecoli_cactus_segments",
  "name": "MC graph: segments (whole graph, by locus)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus"
  },
  "displayDefaults": { "showLabels": "none" },
  "displays": [
    { "type": "LinearGraphDisplay" },
    { "type": "LinearBasicDisplay" }
  ]
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "GraphTrack",
  "trackId": "ecoli_cactus_segments",
  "name": "MC graph: segments (whole graph, by locus)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus"
  },
  "displayDefaults": { "showLabels": "none" },
  "displays": [
    { "type": "LinearGraphDisplay" },
    { "type": "LinearBasicDisplay" }
  ]
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "GraphTrack",
  "trackId": "ecoli_cactus_segments",
  "name": "MC graph: segments (whole graph, by locus)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus"
  },
  "displayDefaults": { "showLabels": "none" },
  "displays": [
    { "type": "LinearGraphDisplay" },
    { "type": "LinearBasicDisplay" }
  ]
}

Turned on, the track draws the window as a graph on K12's coordinates. In its track menu, Display types → Feature display draws the same segments as a row of blocks instead.

The Minigraph-Cactus graph put into an empty K12 session: the track added through Open track... → Add pangenome graph track, the window narrowed onto the IS1 element past flhD, and the track drawing the graph on K12's coordinates.

Video

Open the session the video starts in ↗, then take the steps it shows:

Load the graph by URL from File, Open track
The graph draws under the genes, cut from the window on screen
Select the IS1 element past flhD and zoom to it
At IS1 the graph re-cuts: the element is one node the other strains skip

Steps

Open this view in JBrowse Web ↗ · Open this view in JBrowse Desktop ↗

Desktop link does nothing?

It needs JBrowse Desktop 5.0+. Or paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C972%2C900-1%2C984%2C900%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome_cactus%2Fsubgraph_launch

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).This figure uses “K12 genes”.
Type your region of interest into the location box and press Enter.This figure is at chr:1,972,900-1,984,900.

CLI

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Spec tab, or jbrowse set-default-session.

Spec

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json, which is what the Web button above opens.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,972,900-1,984,900",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        }
      ]
    }
  ]
}

Notebook

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []) + [
        {
            "type": "FeatureTrack",
            "trackId": "K12_genes",
            "name": "K12 genes",
            "assemblyNames": [
                "K12"
            ],
            "adapter": {
                "type": "Gff3TabixAdapter",
                "gffGzLocation": {
                    "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
                },
                "index": {
                    "location": {
                        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
                    }
                }
            }
        }
    ],
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "K12",
            "loc": "chr:1,972,900-1,984,900",
            "tracks": [
                {
                    "trackId": "K12_genes",
                    "type": "LinearBasicDisplay",
                    "height": 70
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file with --bam, --vcfgz and the other file flags.

cat > tracks.json <<'JSON'
[
  {
    "type": "FeatureTrack",
    "trackId": "K12_genes",
    "name": "K12 genes",
    "assemblyNames": [
      "K12"
    ],
    "adapter": {
      "type": "Gff3TabixAdapter",
      "gffGzLocation": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
      },
      "index": {
        "location": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
        }
      }
    }
  }
]
JSON

npx @jbrowse/img --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --tracks tracks.json \
  --assembly K12 --loc chr:1,972,900-1,984,900 \
  --track K12_genes display:LinearBasicDisplay '{"height":70}' \
  --width 1920 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Agent

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,972,900-1,984,900",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --width 1920 --height 780 \
  --spec session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Past the flagellar operon, K12 has an IS1 element (a short insertion sequence) the other four skip. To see it:

Type chr:1,978,100-1,979,700.
Pick Force-directed under the Layout row of the graph track's menu.
Add a second copy of the segments track, colored by how many strains the SM:Z: tag lists for each segment (config on the pggb page).
Show the MAF track above the graph: the strains-per-segment track counts the strains, and the MAF's rows name them.

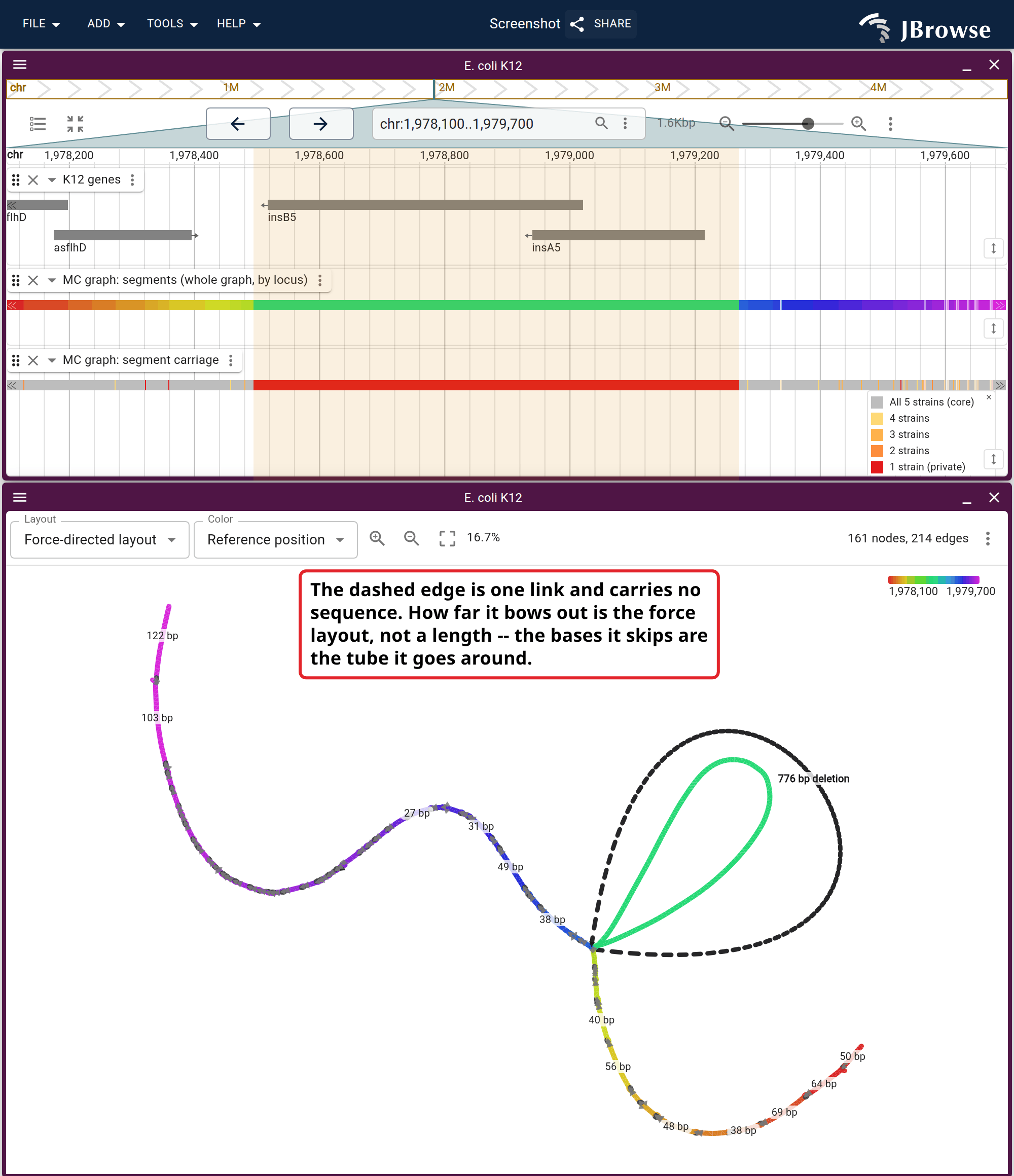

1.6 kb of K12 past flhD, as tracks above and as the graph track below. The gene track names the IS1 transposase pair insA5 and insB5 in the shaded span, the strains-per-segment track paints that span as one strain where the rest of the window is all five, the four non-K12 MAF rows show it as a deletion, and in the graph it is the single long node the other four route around.

In the track menu, Show... → Show deletion edges hides the dashed link the graph draws for the other four strains' route, which is labelled with the length of the node it skips.

Comparing odgi viz's node-order axis with K12's coordinates

Open mc/ecoli.viz/chr.full.viz.png, the odgi viz raster --viz wrote, with one row per strain and graph node order on the horizontal axis.

The five-strain Minigraph-Cactus graph drawn by odgi viz, one row per strain. The horizontal axis is graph node order, so its positions do not correspond to genes or coordinates. The gold band marks the locus the figure below opens.

The odgi pav track contains the same paths. Drawn on K12's coordinates, in the raster's row order and colors, they differ only on the horizontal axis. The gold band marks chr:1,000,000-1,100,000 in both.

The same paths and the same colors on K12's coordinates. The gold band is the same 100 kb in both figures, and takes up a visibly smaller share of this axis than of the graph axis above.

The graph axis counts pangenome bases, so a locus where other strains have sequence K12 lacks takes up more of it. The band contains Sakai's stx2 prophage and a second Sakai-only stretch.

Reproduce it end to end

build_ecoli_pangenome_cactus.sh runs everything above in one shot. It:

downloads the five RefSeq genomes, keeping only each one's chromosome, and runs cactus-pangenome
converts the HAL, VCF, odgi depth and odgi pav into the projections above, and maps the KTa004 reads
indexes the base-level graph by following the reference's paths, as the graph-hosting tutorial describes
writes a config.json with the five assemblies, per-strain gene tracks, the projection and segments tracks, the plugin declaration and a default session

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_ecoli_pangenome_cactus.sh
bash build_ecoli_pangenome_cactus.sh   # builds ./ecoli_cactus_build/jbrowse2
npx --yes serve ecoli_cactus_build/jbrowse2

The script needs the tools under Prerequisites; force a container runtime with CONTAINER=singularity.

External links

Minigraph-Cactus

Feedback on this tutorial is welcome: contact us.

Pangenome (Minigraph-Cactus)

Prerequisites#

Where the data comes from#

Building the graph with cactus-pangenome#

Load the genomes#

Synteny between all five strains (halSynteny)#

Variants against K12 (vg deconstruct)#

Whole-genome alignment onto K12 (MAF)#

Pangenome depth and per-strain presence#

Mapping a new isolate through the graph#

Drawing the graph as a graph#

Indexing the graph#

Comparing odgi viz's node-order axis with K12's coordinates#

Reproduce it end to end#

See also#

External links#

Prerequisites

Where the data comes from

Building the graph with cactus-pangenome

Load the genomes

Synteny between all five strains (halSynteny)

Variants against K12 (vg deconstruct)

Whole-genome alignment onto K12 (MAF)

Pangenome depth and per-strain presence

Mapping a new isolate through the graph

Drawing the graph as a graph

Indexing the graph

Comparing odgi viz's node-order axis with K12's coordinates

Reproduce it end to end

See also

External links
