Synteny from an ortholog table (grape, peach, cacao)
2 videos in this tutorial
TL;DR: jcvi's MCScan lines up orthologous genes across more than two genomes at once, into one wide table with a column per species. We load that table directly, draw grape, peach and cacao as rows of a single synteny view, and then read one grape locus across all seven plant genomes without leaving grape's own view.
Prerequisites
- a JBrowse to open them in: Desktop takes a local file by path, Web through Add track
- jcvi with the LAST aligner
- Or any other ortholog table, including an MCScanX run (converting one needs only python3)
- the NCBI
datasetsCLI - gffread
samtools- htslib (
bgzip,tabix) node, for the JBrowse CLI
On Debian/Ubuntu, apt install samtools tabix last-align gffread covers the
aligner and the file tools; jcvi installs with pip install jcvi, datasets is
a single-binary download, and node comes from
nodejs.org.
Where the data comes from
Seven RefSeq assemblies, one per species, each fetched by accession with the
datasets CLI.
-
grape: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/030/704/535/GCF_030704535.1_ASM3070453v1/
-
peach: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/346/465/GCF_000346465.2_Prunus_persica_NCBIv2/
-
cacao: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/208/745/GCF_000208745.1_Criollo_cocoa_genome_V2/
-
arabidopsis: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/001/735/GCF_000001735.4_TAIR10.1/
-
poplar: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/002/775/GCF_000002775.5_P.trichocarpa_v4.1/
-
tomato: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/036/512/215/GCF_036512215.1_SLM_r2.1/
-
citrus: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/493/195/GCF_000493195.1_Citrus_clementina_v1.0/
-
the finished
.blockstable, BEDs and config, rehosted so the stacked view loads without rerunning the pipeline: https://jbrowse.org/demos/grape_peach_cacao/config.json
Three genomes from one ortholog table

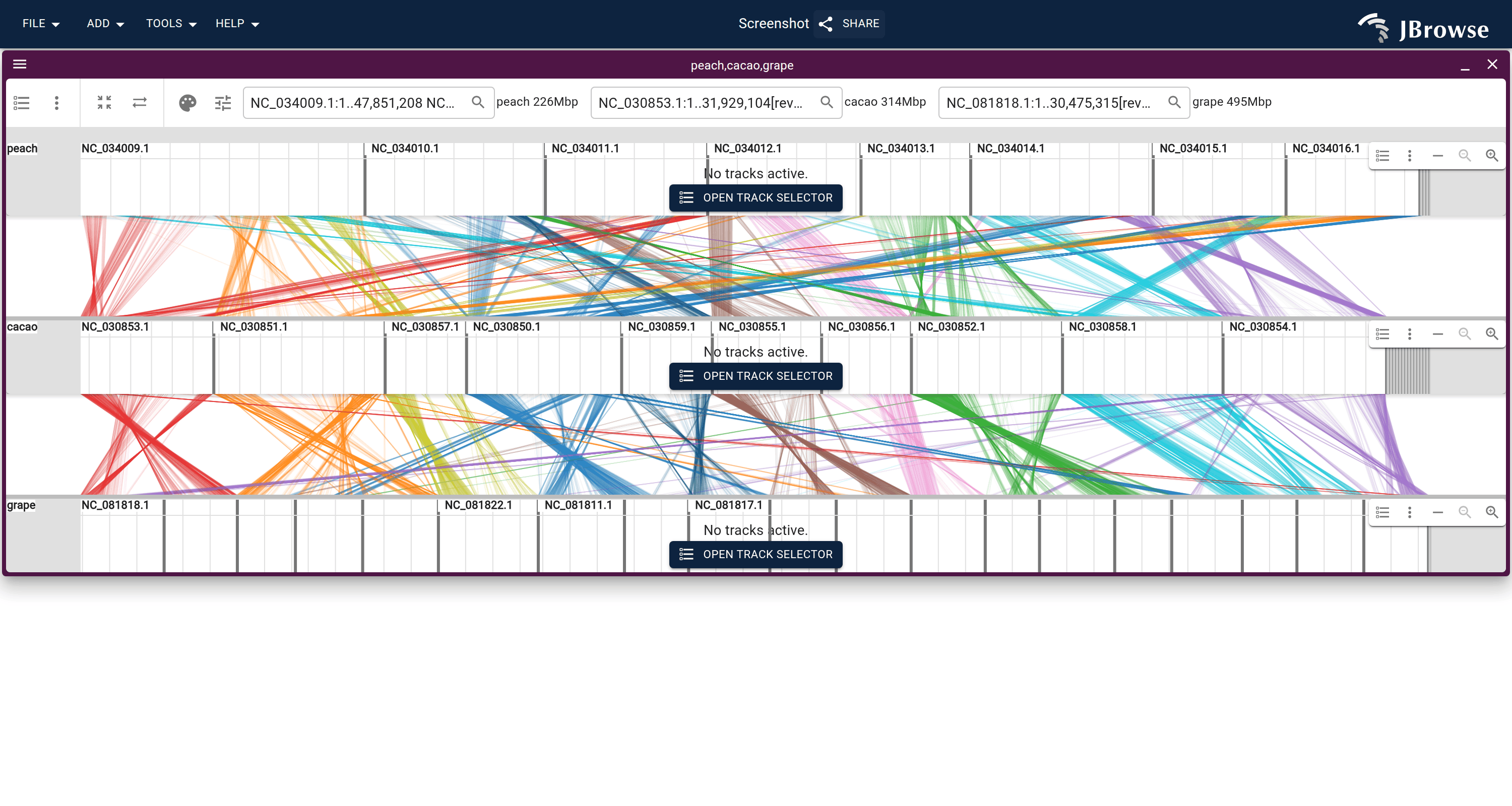

A linear synteny view stacks more than two genomes: N genome rows with a synteny
"ribbon" band between each adjacent pair. This tutorial builds a three-way grape
/ peach / cacao view from a single jcvi
MCScan .blocks file, a standard cross-species ortholog table.
An ortholog table compares annotated genes, so it spans species too divergent to line up base by base. All-vs-all synteny stacks genomes from a whole-genome PAF, where they are close enough to align.
What a .blocks file is
A .blocks file is a wide, tab-delimited table: one row per group of
orthologous genes, one column per genome, . where a genome has no member. The
file names none of its columns, so blockAssemblies does, by position. With
placeholder ids, a grape, peach and cacao table reads:
grape01 peach01 cacao01
grape02 peach02 cacao02
grape03 . .A real cell holds whatever that genome's annotation calls the gene, which for
the NCBI annotations below looks like rna-XM_007225519.2. The table carries no
coordinates: one .bed per genome, produced alongside, places each gene id.
One reference, or all against all
A table is reference-anchored when every row starts from one genome's gene and records what the others have for it, and all against all when a row is an orthogroup inferred across the genomes at once. The difference is in the pairs that leave the reference out.
The format and the adapter take any two columns. To draw a pair the adapter keeps the rows where both of those cells resolve, and it never consults column 0, so a table with no reference column is fine.
jcvi MCScan tables are anchored. mcscan writes one row per gene of the
genome you anchor on, so a peach-cacao ortholog with no grape counterpart has no
row to live in. Grape against either mate is a direct alignment; peach against
cacao is what their shared grape genes imply, the approximation
Direct vs transitive pairs measures.
OrthoFinder infers each orthogroup across all the genomes at once. A peach-cacao ortholog gets its row whether or not grape kept one, so every pair of columns rests on the same inference. Synteny visualization (OrthoFinder orthogroups) builds a six-genome view that way.
MCScanX compares every pair of genomes
in the run. It writes them all to one .collinearity file, so the result is
all against all before anything anchors it. Converting one
below picks a reference, and a pair that leaves it out stays loadable as a track
of its own.
A duplicated gene
A cell holds one gene id, so a second copy needs somewhere else to go, and the two conventions put it in different places.
mcscan writes a column per chain of synteny blocks rather than per genome, so
a grape gene syntenic to two peach regions fills a second peach column. --iter
caps how many chains it writes, and the run below pins it to the highest-scoring
one. At --iter=2:
grape01 peach01 peach01b
grape02 peach02 .
grape03 . .Name that column in blockAssemblies like any other, peach twice with
peach.bed twice beside it, and both are drawn: a grape gene with a copy in
each column links to each. assemblyNames lists the genomes the track can
render, so peach appears there once.
The other convention is a copy per row, repeating the grape id:
grape01 peach01 cacao01
grape02 peach02a cacao02
grape02 peach02b cacao02
grape03 . .Both rows resolve, so the grape-peach band draws a ribbon from grape02 to each
copy, and the repeated cacao02 draws its grape-cacao ribbon twice over.
orthogroups_to_blocks.py writes that shape by default; the MCScanX converter
keeps the best-scoring copy and drops the rest.
Producing the data
grape.blocks and the BED files come from
jcvi and the
LAST aligner, over the seven accessions under
Where the data comes from, one per species. One
accession supplies the genome, the annotation and (through gffread) the CDS,
so the assembly and the annotation drawn on it cannot be two different builds.
From there, gffread extracts the CDS and jcvi converts the annotation:
for sp in grape peach cacao; do
gffread "$sp.gff3" -g "$sp.fa" -x "$sp.cds.fa"
# --key=ID on both sides is what makes the two files join; --primary_only
# keeps one transcript per gene, so a link is gene to gene
python -m jcvi.formats.gff bed --type=mRNA --key=ID --primary_only \
"$sp.gff3" -o "$sp.bed"
python -m jcvi.formats.fasta format "$sp.cds.fa" "$sp.cds"
doneBoth sides key on the mRNA's GFF3 ID, which is what makes the later join work:
gffread names each extracted CDS after that ID, and jcvi's --key=ID writes the
same string into BED column 4. jcvi falls back to a generated mrna_494685 for
a key it cannot resolve, and a BED full of those joins to nothing, which is what
--key=transcript_id and --key=Name produce on an NCBI annotation.
Then catalog orthologs against the reference, MCScan each pair, and join:
for sp in peach cacao; do
# --no_strip_names keeps the ids matching the BEDs above
python -m jcvi.compara.catalog ortholog --no_strip_names grape "$sp"
# --iter=1 keeps one block per grape gene, which is one lane per mate
python -m jcvi.compara.synteny mcscan grape.bed "grape.$sp.lifted.anchors" \
--iter=1 -o "grape.$sp.i1.blocks"
done
python -m jcvi.formats.base join grape.peach.i1.blocks grape.cacao.i1.blocks \
--noheader | cut -f1,2,4 > grape.blocksEach per-pair table is two columns, grape then the mate, so the join emits the
grape column once per table. cut -f1,2,4 keeps the grape anchor followed by
one mate per lane, which is the order blockAssemblies and bedLocations have
to list.
Each assembly also gets a refNameAliases file built from the download's own
sequence report, since NCBI names sequences by accession.
The adapter reads .blocks and BED files plain or gzipped.
Bringing your own ortholog table
MCScanBlocksAdapter needs two inputs, neither of them MCScan-specific:
- a tab-delimited table, one row per orthogroup and one column per genome, each
cell holding a single gene id (
.or an empty cell for no ortholog) - one BED per column whose fourth field carries those same gene ids
Any ortholog or all-vs-all homology result reshapes into that, and two columns is a valid table, so a reciprocal-best-hit list already works as a pairwise synteny track with no MCScan step.
From MCScanX
MCScanX writes one .collinearity file
holding every block it found across every pair of genomes in the run.
mcscanx_to_anchors.py
pivots one into a table, given the two-letter chromosome tag MCScanX uses for
each genome:
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/mcscanx_to_anchors.py
python3 mcscanx_to_anchors.py --gff xyz.gff --collinearity xyz.collinearity \
--species vv=grape --species pp=peach --species tc=cacaoThat writes grape.blocks and a BED per genome. The first --species is column
0 and only a pair including it can fill a cell, so a block MCScanX found between
two non-reference genomes has nowhere to go in the table, and the adapter
reaches that pair transitively instead. Where one reference gene has blocks
against several genes of another genome, the best-scoring takes the cell.
--blocks-score appends the row's weakest pairing as a trailing column, which
the adapter's attributeColumns names:
{
"type": "SyntenyTrack",
"trackId": "grape_peach_cacao_scored",
"name": "Grape / peach / cacao (MCScanX, scored)",
"assemblyNames": ["grape", "peach", "cacao"],
"adapter": {
"type": "MCScanBlocksAdapter",
"uri": "grape.blocks",
"blockAssemblies": ["grape", "peach", "cacao"],
"bedLocations": [
{ "uri": "grape.bed" },
{ "uri": "peach.bed" },
{ "uri": "cacao.bed" }
],
"assemblyNames": ["grape", "peach", "cacao"],
"attributeColumns": ["score"]
}
}jbrowse add-track-json '{
"type": "SyntenyTrack",
"trackId": "grape_peach_cacao_scored",
"name": "Grape / peach / cacao (MCScanX, scored)",
"assemblyNames": ["grape", "peach", "cacao"],
"adapter": {
"type": "MCScanBlocksAdapter",
"uri": "grape.blocks",
"blockAssemblies": ["grape", "peach", "cacao"],
"bedLocations": [
{ "uri": "grape.bed" },
{ "uri": "peach.bed" },
{ "uri": "cacao.bed" }
],
"assemblyNames": ["grape", "peach", "cacao"],
"attributeColumns": ["score"]
}
}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "SyntenyTrack",
"trackId": "grape_peach_cacao_scored",
"name": "Grape / peach / cacao (MCScanX, scored)",
"assemblyNames": ["grape", "peach", "cacao"],
"adapter": {
"type": "MCScanBlocksAdapter",
"uri": "grape.blocks",
"blockAssemblies": ["grape", "peach", "cacao"],
"bedLocations": [
{ "uri": "grape.bed" },
{ "uri": "peach.bed" },
{ "uri": "cacao.bed" }
],
"assemblyNames": ["grape", "peach", "cacao"],
"attributeColumns": ["score"]
}

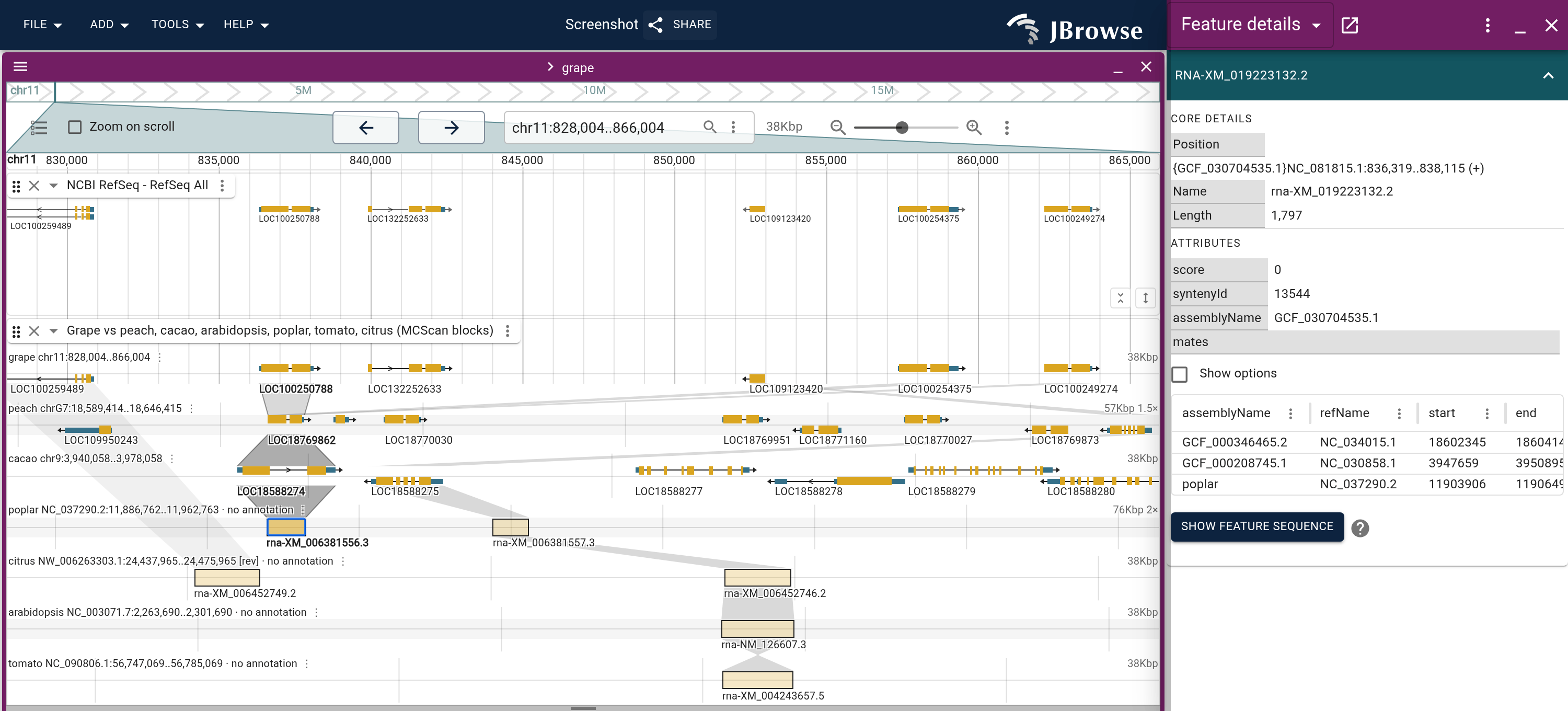

}Each named column becomes a feature attribute, so it shows in the detail panel and gets its own entry in the palette button's menu, scaled to the values in view.
The script's refName and strand handling is described in the
pairwise MCScan tutorial.
Given two --species it writes that tutorial's .anchors files, which draws a
pair the table left out as a second track on that band.
From OrthoFinder
Orthogroups.tsv is already one row per orthogroup and one column per genome,
but it carries a header row, a leading Orthogroup id column, and
comma-separated gene lists per cell:
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/orthogroups_to_blocks.py
python3 orthogroups_to_blocks.py Orthogroups.tsv -o grape.blocks \
--bed grape=grape.bed --bed peach=peach.bedThe script prints the column order blockAssemblies needs, read off the header
row, which is OrthoFinder's own column order. By default a duplicated gene
becomes one row per copy. Synteny visualization (OrthoFinder orthogroups) builds a
six-genome view this way and covers both choices.
From Ensembl Compara
Compara publishes one homology TSV per species, so the table is a download:
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/compara_to_blocks.py
python3 compara_to_blocks.py Compara.116.protein_default.homologies.tsv.gz \
--reference sorghum_bicolor=sorghum --species triticum_aestivum=wheat \
--bed sorghum=sorghum.bed --bed wheat=wheat.bedEach row carries what the inference measured, so attributeColumns can name
identity, homology_identity and goc_score the same way the scored MCScanX
table above names score. A partner species the export does not have writes no
table and says nothing, so check each --species name against the file's own
homology_species column. Synteny visualization (a polyploid against itself) uses this route
for one panel of its figure.
From reciprocal best BLAST hits
Reduce each direction of an all-vs-all blastp or DIAMOND run (-outfmt 6) to
its best hit per query, then keep the pairs that agree both ways:
sort -k1,1 -k12,12gr grape_vs_peach.tsv | awk '!seen[$1]++ {print $1 "\t" $2}' > g2p
sort -k1,1 -k12,12gr peach_vs_grape.tsv | awk '!seen[$1]++ {print $1 "\t" $2}' > p2g
awk 'NR == FNR {best[$1] = $2; next} best[$2] == $1' p2g g2p > grape_peach.rbhgrape_peach.rbh is a two-column table, loadable as-is with
blockAssemblies: ["grape", "peach"]. For more genomes, run the same reduction
against one reference genome and outer-join the results on the reference gene:
export LC_ALL=C # join and sort must agree on collation
join -t $'\t' -a1 -a2 -e . -o 0,1.2,2.2 \
<(sort -k1,1 grape_peach.rbh) <(sort -k1,1 grape_cacao.rbh) > grape.blocksAny source that exports gene pairs per genome pair joins the same way. The reference column is whichever genome you joined on, so the direct vs transitive distinction below applies to any table built this way.
BED files
Only the first six BED fields are read. From a GFF3:
awk -F'\t' -v OFS='\t' '$3 == "gene" && match($9, /ID=[^;]+/) {
id = substr($9, RSTART + 3, RLENGTH - 3)
sub(/^gene:/, "", id)
print $1, $4 - 1, $5, id, 0, $7
}' grape.gff3 > grape.bedEnsembl namespaces its GFF3 ids (ID=gene:VIT_00000001) where its proteomes do
not, so the sub is what makes an Ensembl BED match an ortholog table built
from Ensembl proteins.
Three of the six fields have a job. Column 1 must use the same sequence names as
the JBrowse assembly. Column 4 must match the table's gene ids, which is where
this goes wrong: the
adapter's gotchas
cover how ids get mangled and which mismatches are loud, and the one this
pipeline has to pass --no_strip_names for is jcvi dropping isoform suffixes.
Column 6 is each gene's strand, and a ribbon is drawn inverted when the two ends
disagree.
Setting up the three assemblies
The stacked view has one row per genome, so grape, peach, and cacao must each be
a JBrowse assembly whose name matches an entry in the track's assemblyNames.
Each genome FASTA goes in with jbrowse add-assembly (in the
script below). Each assembly's reference sequence
names must match the chromosome names in the corresponding .bed file. See the
assemblies configuration guide for the
equivalent JSON.
Loading the blocks file with MCScanBlocksAdapter
A synteny band draws one pair, but a .blocks file describes N, so one track
backs every band of the stack: list all the genomes in assemblyNames, and the
view tells the adapter which pair each band draws. blockAssemblies names every
column in order (column 0 first) and bedLocations gives the matching
per-column BED:
{
"type": "SyntenyTrack",
"trackId": "grape_peach_cacao_blocks",
"name": "Grape / peach / cacao (MCScan blocks)",
"assemblyNames": ["grape", "peach", "cacao"],
"adapter": {
"type": "MCScanBlocksAdapter",
"uri": "grape.blocks.gz",
"blockAssemblies": ["grape", "peach", "cacao"],
"bedLocations": [
{ "uri": "grape.bed.gz" },
{ "uri": "peach.bed.gz" },
{ "uri": "cacao.bed.gz" }
],
"assemblyNames": ["grape", "peach", "cacao"]
}
}jbrowse add-track-json '{
"type": "SyntenyTrack",
"trackId": "grape_peach_cacao_blocks",
"name": "Grape / peach / cacao (MCScan blocks)",
"assemblyNames": ["grape", "peach", "cacao"],
"adapter": {
"type": "MCScanBlocksAdapter",
"uri": "grape.blocks.gz",
"blockAssemblies": ["grape", "peach", "cacao"],
"bedLocations": [
{ "uri": "grape.bed.gz" },
{ "uri": "peach.bed.gz" },
{ "uri": "cacao.bed.gz" }
],
"assemblyNames": ["grape", "peach", "cacao"]
}
}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "SyntenyTrack",
"trackId": "grape_peach_cacao_blocks",
"name": "Grape / peach / cacao (MCScan blocks)",
"assemblyNames": ["grape", "peach", "cacao"],
"adapter": {
"type": "MCScanBlocksAdapter",
"uri": "grape.blocks.gz",
"blockAssemblies": ["grape", "peach", "cacao"],
"bedLocations": [
{ "uri": "grape.bed.gz" },
{ "uri": "peach.bed.gz" },
{ "uri": "cacao.bed.gz" }
],
"assemblyNames": ["grape", "peach", "cacao"]
}
}bedLocations and blockAssemblies are read as written, so the table and the
BEDs have to already sit where their uris point.
Stacking the three genomes
Add a linear synteny view (Add → Linear synteny view) and pick
grape_peach_cacao_blocks: it lists all three assemblies, so each becomes a row
and the one track backs every adjacent band. The
all-vs-all tutorial walks that
dialog step by step.
The declarative equivalent is a top-level defaultSession, here stacking them
peach-cacao-grape:
{
"defaultSession": {
"name": "Grape / Peach / Cacao multi-way synteny",
"views": [
{
"type": "LinearSyntenyView",
"displayName": "Peach - Cacao - Grape (MCScan blocks)",
"views": [
{ "assembly": "peach" },
{ "assembly": "cacao" },
{ "assembly": "grape" }
],
"tracks": [["grape_peach_cacao_blocks"], ["grape_peach_cacao_blocks"]],
"colorBy": "reference",
"autoDiagonalize": true
}
]
}
}jbrowse set-default-session --session - << 'EOF'
{
"name": "Grape / Peach / Cacao multi-way synteny",
"views": [
{
"type": "LinearSyntenyView",
"displayName": "Peach - Cacao - Grape (MCScan blocks)",
"views": [
{ "assembly": "peach" },
{ "assembly": "cacao" },
{ "assembly": "grape" }
],
"tracks": [["grape_peach_cacao_blocks"], ["grape_peach_cacao_blocks"]],
"colorBy": "reference",
"autoDiagonalize": true
}
]
}
EOFtracks is one entry per band: tracks[0] connects rows 0-1 (peach-cacao),
tracks[1] rows 1-2 (cacao-grape), both served by the same track.
autoDiagonalize reorders and flips each row's chromosomes on load so the
ribbons run along the diagonal. colorBy: "reference" anchors every band on the
shared middle row, so a cacao chromosome keeps one color across both.
Direct vs transitive pairs
This table is anchored on grape, so only pairs including grape are direct alignments. The adapter still serves peach-cacao, but each such link had to pass through a shared grape gene to get a row, and any peach-cacao ortholog grape has lost is absent. Row order therefore matters: put the reference in the middle (peach-grape-cacao) and every band is direct. The demo above stacks grape at the bottom, which is the transitive layout.
The script counts, per column pair, the rows where both cells resolve, which is every link the band can draw. Grape's own pairs are the control: every row has a grape gene, so a grape pair draws every row its mate fills, and the peach-cacao pair falls short of that by whatever grape lost.

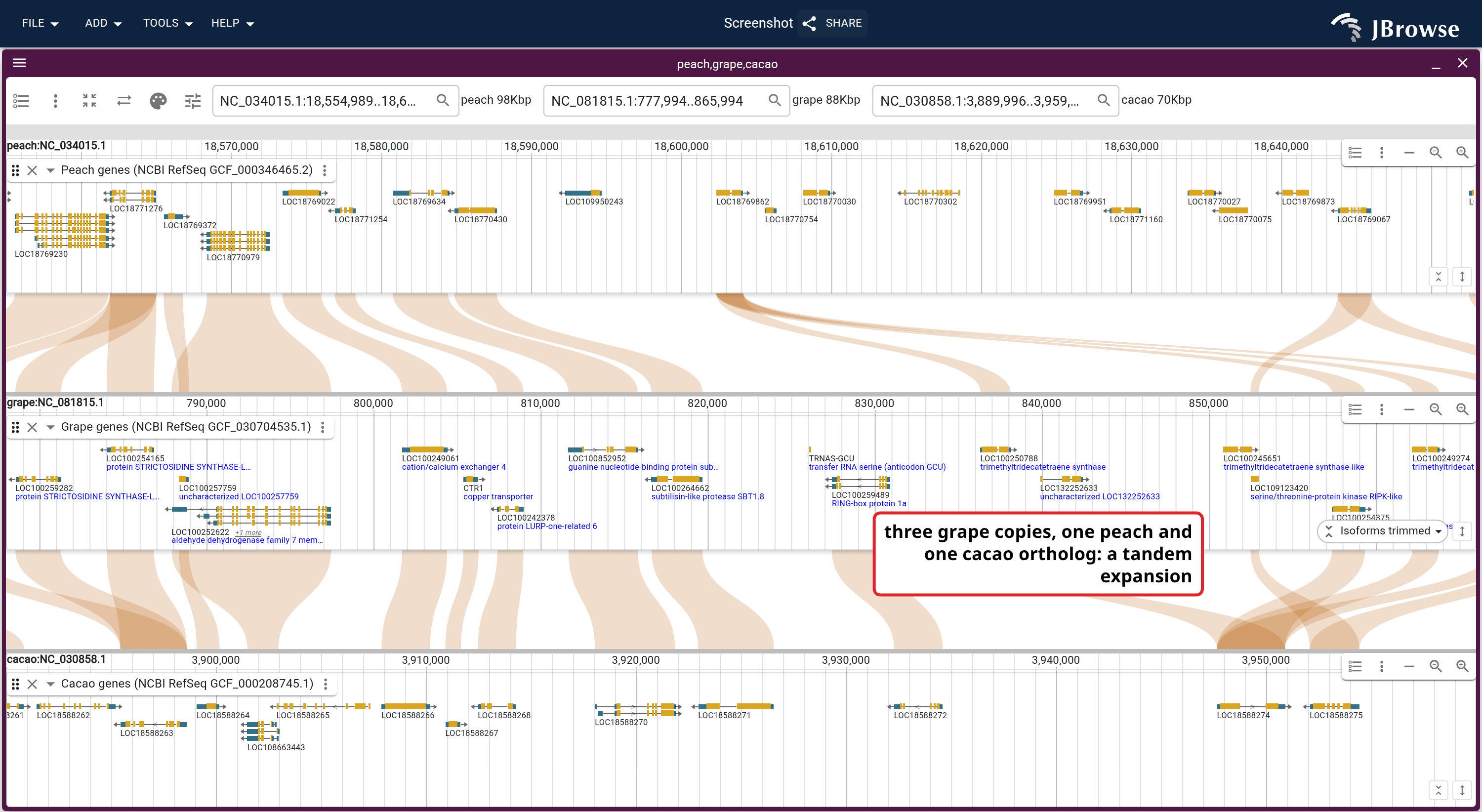

Zooming to a conserved block
Zoom to one conserved block, with grape in the middle so both bands are direct, and turn on each genome's gene track with Show only genes.

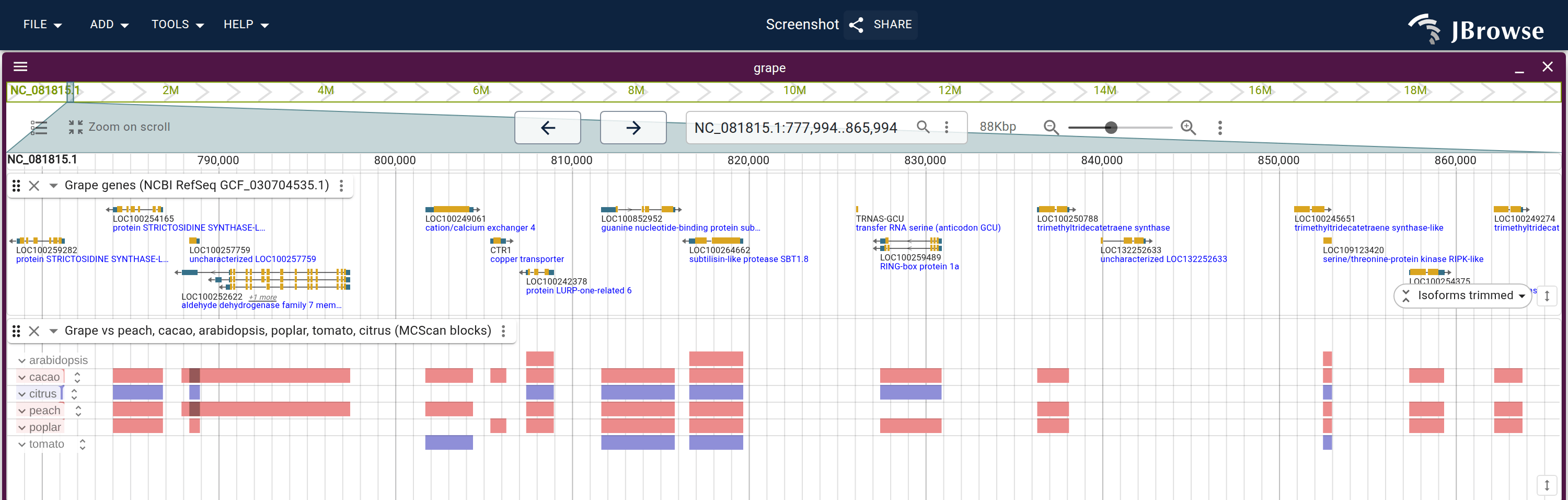

One locus against all seven genomes
The stacked view draws three rows because only grape, peach and cacao were set
up as assemblies, and grape.blocks carries seven columns. The other four are
reachable from a plain linear genome view on grape, where the same track draws
every mate at once:
- Navigate to
11:778,000-866,000and turn on the grape gene track. - Turn on the ortholog track Grape vs peach, cacao, arabidopsis, poplar,
tomato, citrus (MCScan blocks), which in a plain view renders as an
LGVSyntenyDisplay: every mate in one pileup. - Pick Group by... → Mate assembly to split that pileup into a lane per genome. Adding a column to the table adds a lane.

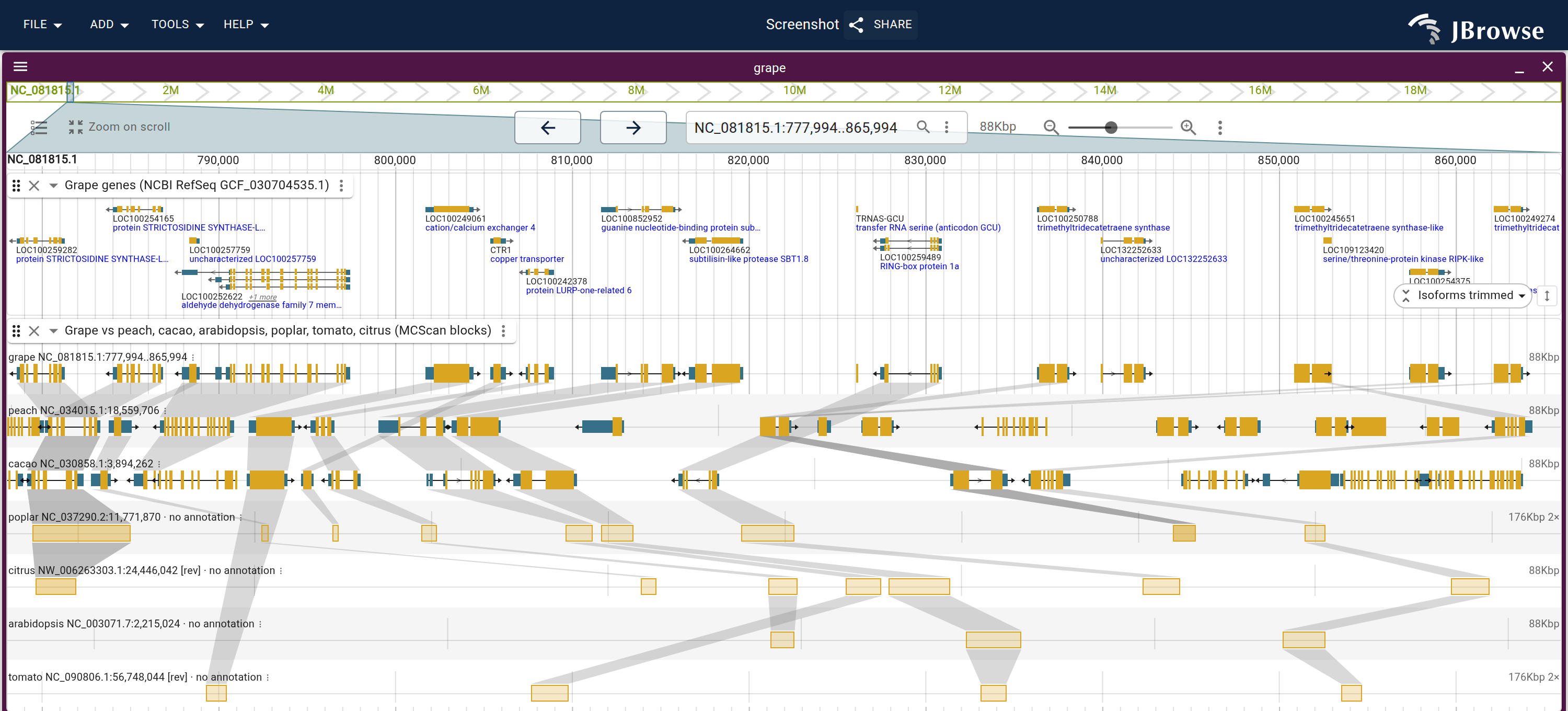

Each genome in its own coordinates
Every lane above is drawn on grape's axis, so it reads as presence and absence down a column and nothing else: the lane cannot say where in peach's own genome those genes sit, or how much peach DNA they take. Display types → Multi-way synteny display on the same track redraws the lanes in each genome's own coordinates:
- Each lane is fitted to its own genome, spanning the orthologs the visible window brings in, so a local expansion takes more of its own lane.
- One grey ribbon per ortholog group, joining adjacent lanes and bridging past a lane that places nothing for the group, down to the next that does.
- Any track whose features carry a
mateper other assembly feeds the same lanes, so an OrthoFinder orthogroup table or an all-vs-all PAF draws them too.
The same thing as a defaultSession, which the live link below opens directly:
{
"defaultSession": {
"name": "Grape multi-way synteny track",
"views": [
{
"type": "LinearGenomeView",
"assembly": "grape",
"loc": "11:778,000-866,000",
"tracks": [
{
"trackId": "grape_genes",
"type": "LinearBasicDisplay",
"showOnlyGenes": true,
"displayMode": "compact"
},
{
"trackId": "grape_peach_cacao_blocks",
"type": "MultiWaySyntenyDisplay",
"rowOrder": [
"peach",
"cacao",
"poplar",
"citrus",
"arabidopsis",
"tomato"
],
"height": 340
}
]
}
]
}
}jbrowse set-default-session --session - << 'EOF'
{
"name": "Grape multi-way synteny track",
"views": [
{
"type": "LinearGenomeView",
"assembly": "grape",
"loc": "11:778,000-866,000",
"tracks": [
{
"trackId": "grape_genes",
"type": "LinearBasicDisplay",
"showOnlyGenes": true,
"displayMode": "compact"
},
{
"trackId": "grape_peach_cacao_blocks",
"type": "MultiWaySyntenyDisplay",
"rowOrder": [
"peach",
"cacao",
"poplar",
"citrus",
"arabidopsis",
"tomato"
],
"height": 340
}
]
}
]
}
EOFWhat a lane header says
Each lane has its own scale, so each lane states it:
- Left: where the lane starts, with
[rev]where its gene order runs against grape's. - Right: the lane's span, and the multiple of grape's span where that is not one. A span snaps to a short ladder of those multiples, so a pan that leaves a lane on its rung leaves the lane's content where it was.
- Ticks fall at one interval shared by every mate lane, so two lanes at the same spacing are at the same bp-per-pixel. A lane zoomed far enough out that its ticks would read as hatching draws none, and its multiple is the scale statement instead.
- The view's own gridlines stop at the grape lane, the only lane they are true for.
- A lane with no GFF3 track for its assembly outlines the table's gene spans
and says
no annotation. Only grape, peach and cacao were loaded as assemblies here, so the fourBLOCKS_ONLY_SPECIESlanes are boxes.

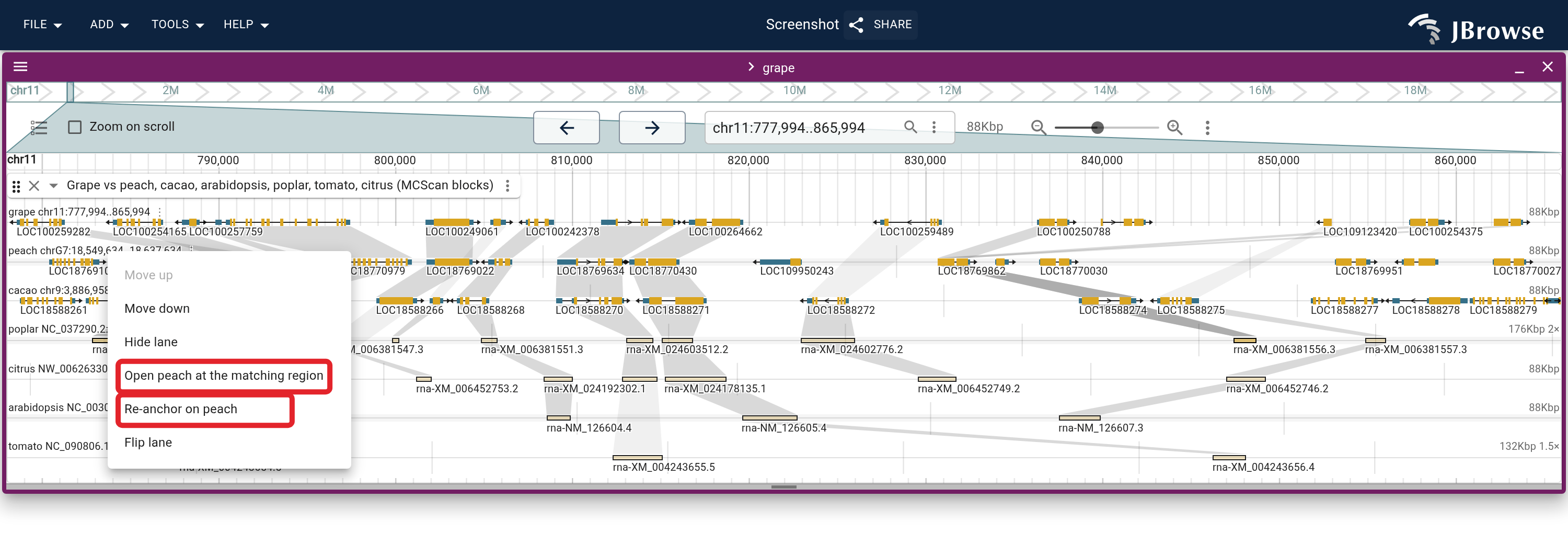

Ordering the lanes
rowOrderpins the lanes it names to the top; the rest follow densest-first over the whole fetched table, so the order holds still across a pan.- Densest-first is a guard rather than a requirement, since a ribbon bridges past a lane that places nothing. Turn Bridge lanes that place nothing off and a sparse lane mid-stack cuts every chain running through it, which is what the ordering protects.

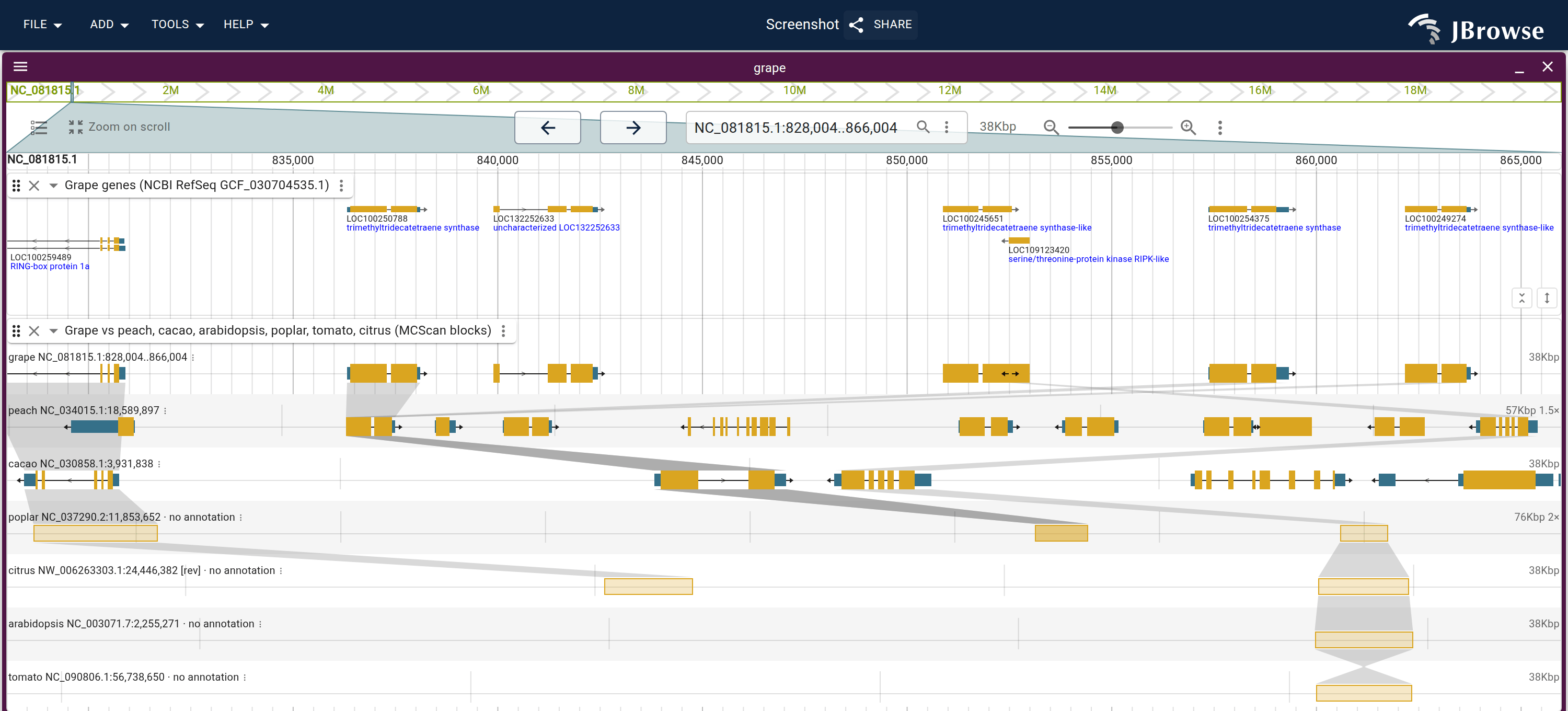

Zooming to genes
Cut the window to a few genes and each ribbon connects one gene to one ortholog:
- A copy-number difference fans one gene into several.
- A lone ortholog draws at gene size, centered in its lane, since the shortest rung on the ladder of lane spans is grape's own.
- Hovering a ribbon names its ortholog group and highlights it down every lane that kept the gene; clicking a glyph opens the feature detail panel.
Restacking around a locus
A lane you want to drive around on its own is the stacked view's job again, and two routes reach it from the reading above:
- From the lane track, choose Launch stacked synteny view (visible region) in its track menu. The dialog opens cut from this track's dataset over the visible window, offering a full row to every genome aligning there.
- From the scale bar, drag-select a locus in any view that has the track open and pick Launch → Linear synteny view. The launch offers the synteny the launching view is drawing, and this track declares all three assemblies, so the dialog opens a row per genome with arrows to order them: moving grape between peach and cacao is the reference-in-the-middle arrangement from Direct vs transitive pairs, where both bands are direct.
Reproduce it end to end
build_grape_peach_cacao_synteny.sh
runs everything above in one shot: each genome from NCBI by accession, the jcvi
ortholog pipeline into one grape.blocks table, and a config.json with the
assemblies and their refName aliases, gene tracks, the synteny track and the
stacked default session. Its BLOCKS_ONLY_SPECIES list is where the extra lanes
come from, and a genome added there needs only CDS and GFF3, since a lane on the
grape axis never reads that genome's sequence.
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_grape_peach_cacao_synteny.sh
bash build_grape_peach_cacao_synteny.sh
npx --yes serve grape_peach_cacao_build/jbrowse2 # then open the printed URLIt needs everything under Prerequisites on your PATH.
See also
- Synteny visualization (all-vs-all minimap2)
- Synteny visualization (OrthoFinder orthogroups)
- Synteny visualization (a polyploid against itself)
- Synteny visualization (pairwise minimap2)
- Synteny on genomes.jbrowse.org
- Linear synteny view
- Synteny track
- MCScanBlocksAdapter
- MultiWaySyntenyDisplay
Feedback on this tutorial is welcome: contact us.
