Gene density and transposon density along a chromosome

TL;DR: we look at where the genes sit along human chromosome 1 and which transposons keep them company: Alu elements pile up where the genes are, and L1 elements where they are not. A whole chromosome holds more genes, and far more repeat copies, than a browser fetches at once, so each track carries a small bigWig of feature counts per kilobase, built once with jbrowse make-density, that the track draws as a band wherever its features are too many to fetch and drops the moment they fit.

Prerequisites

a JBrowse to open the figures' sessions in (Web or Desktop); every file here is a URL, so nothing needs hosting to read along
the JBrowse CLI, for jbrowse make-density and the track it attaches to
bedGraphToBigWig from the UCSC utilities, which make-density runs
htslib (bgzip, tabix), for the counts at the end
node, for Reproduce it end to end only

Where the data comes from

The figures read UCSC's hg38 annotation tables, rehosted on jbrowse.org with a density sidecar beside each file.

RefSeq curated genes, UCSC's ncbiRefSeqCurated table as GFF3: https://jbrowse.org/ucsc/hg38/ncbiRefSeqCurated.gff.gz
RepeatMasker, UCSC's rmsk table as BED with a column header: https://jbrowse.org/ucsc/hg38/rmsk.bed.gz
reference lengths, for the bigWig header: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.chrom.sizes
the sequence: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.2bit
the genes the figures open, with .tbi and .density.bw beside it: https://jbrowse.org/demos/gene_density/genes.gff.gz
the Alu copies cut from the RepeatMasker table, likewise: https://jbrowse.org/demos/gene_density/Alu.bed.gz
the L1 copies: https://jbrowse.org/demos/gene_density/L1.bed.gz
the simple repeats, the control: https://jbrowse.org/demos/gene_density/Simple_repeat.bed.gz

A chromosome of genes

Open the session on chromosome 1 with the four tracks. None of them fetches its features at this width: a track that would have to pull tens of thousands of records to draw a screen stops at the estimate and, since each of these has a density sidecar, draws that instead. Each band is the track's features per kilobase along the chromosome, scaled to its own peak.

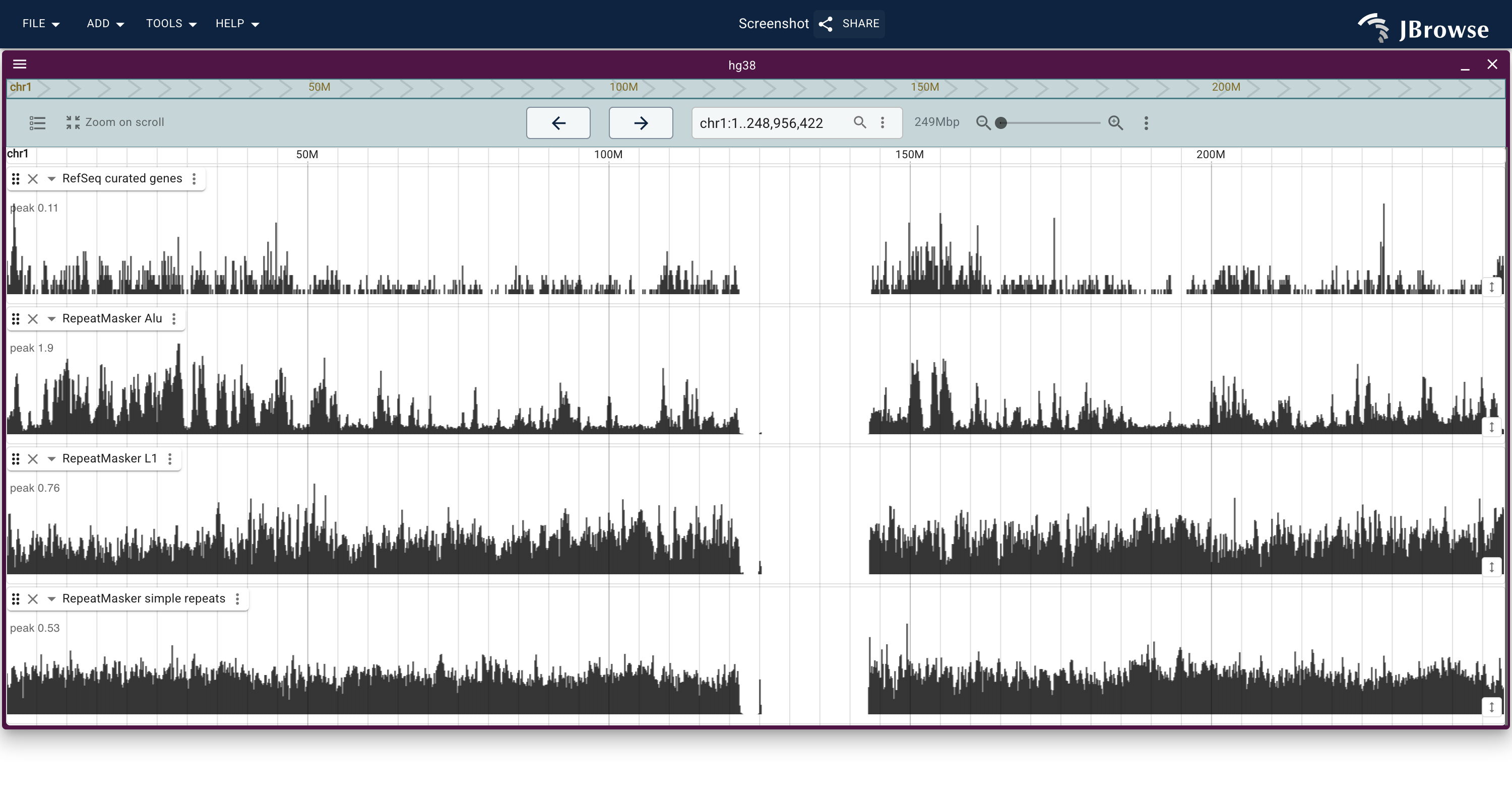

Chromosome 1 with the RefSeq curated genes, the Alu and L1 copies from RepeatMasker, and the simple repeats. Each band is that track's features per kilobase, scaled to its own peak. Genes cluster at the 1p36 tip and across 1q21 to 1q23; Alu rises and falls with them, L1 fills the stretches between, and the simple repeats stay level throughout. Open this view in JBrowse ↗

The gene band and the Alu band share their peaks, the L1 band is close to their negative, and the simple-repeat band, which has no reason to follow either, does not. The gap in every band is the centromere.

The band is a bigWig beside the file

The sidecar is one bigWig per track: the number of features starting in each 1 kb bin, counted once from the file. jbrowse make-density reads the GFF3 and writes it beside the input, named for the file with .density.bw in place of its .gz:

# --chrom-sizes gives the bigWig header its reference lengths;
#   --assembly hg38.fa reads them off the FASTA's .fai instead
# a GFF3 counts only lines with no Parent= attribute, so a gene is one
#   count however many transcripts and exons hang under it; a BED, GTF
#   or VCF counts every record
# every bin is written, empty ones included, so the bigWig's zoomed-out
#   levels average over the whole span rather than over the bins with a hit
jbrowse make-density genes.gff.gz --chrom-sizes hg38.chrom.sizes

jbrowse add-track genes.gff.gz then finds genes.gff.density.bw beside the file and attaches it on its own; a sidecar elsewhere, or a remote one, is named with --density. What it writes is the densityAdapter slot on the track's adapter, a BigWigAdapter over the sidecar:

Config file CLI (add-track-json) JBrowse Desktop

{
  "type": "FeatureTrack",
  "trackId": "hg38_genes",
  "name": "RefSeq curated genes",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/genes.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/genes.gff.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/genes.gff.density.bw"
      }
    }
  },
  "displayDefaults": { "densityTierBpPerPx": 50000 }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "hg38_genes",
  "name": "RefSeq curated genes",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/genes.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/genes.gff.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/genes.gff.density.bw"
      }
    }
  },
  "displayDefaults": { "densityTierBpPerPx": 50000 }
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "hg38_genes",
  "name": "RefSeq curated genes",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/genes.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/genes.gff.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/genes.gff.density.bw"
      }
    }
  },
  "displayDefaults": { "densityTierBpPerPx": 50000 }
}

The slot is on the adapter rather than the display, so every display over the file gets the band. densityTierBpPerPx is the one display setting here, and it is optional: on the smaller chromosomes a screen of genes fits the fetch budget, and the band is the point at that zoom, so the gene track asks for it from 50 kb per pixel outward rather than leaving the swap to the budget alone. The repeat tracks need no such nudge.

The three repeat tracks are the RepeatMasker table cut into one BED per family on its repFamily column, so that the Alu track's features are Alus and its sidecar counts Alus. The same make-density line over each family's BED gives its sidecar.

Zooming in gives the features back

Zoom to 10 Mb over 1q21 to 1q23. The gene track's fetch now fits, so its band is gone and the genes are drawn. The Alu and L1 tracks would still each pull thousands of records for this window, so they keep their bands.

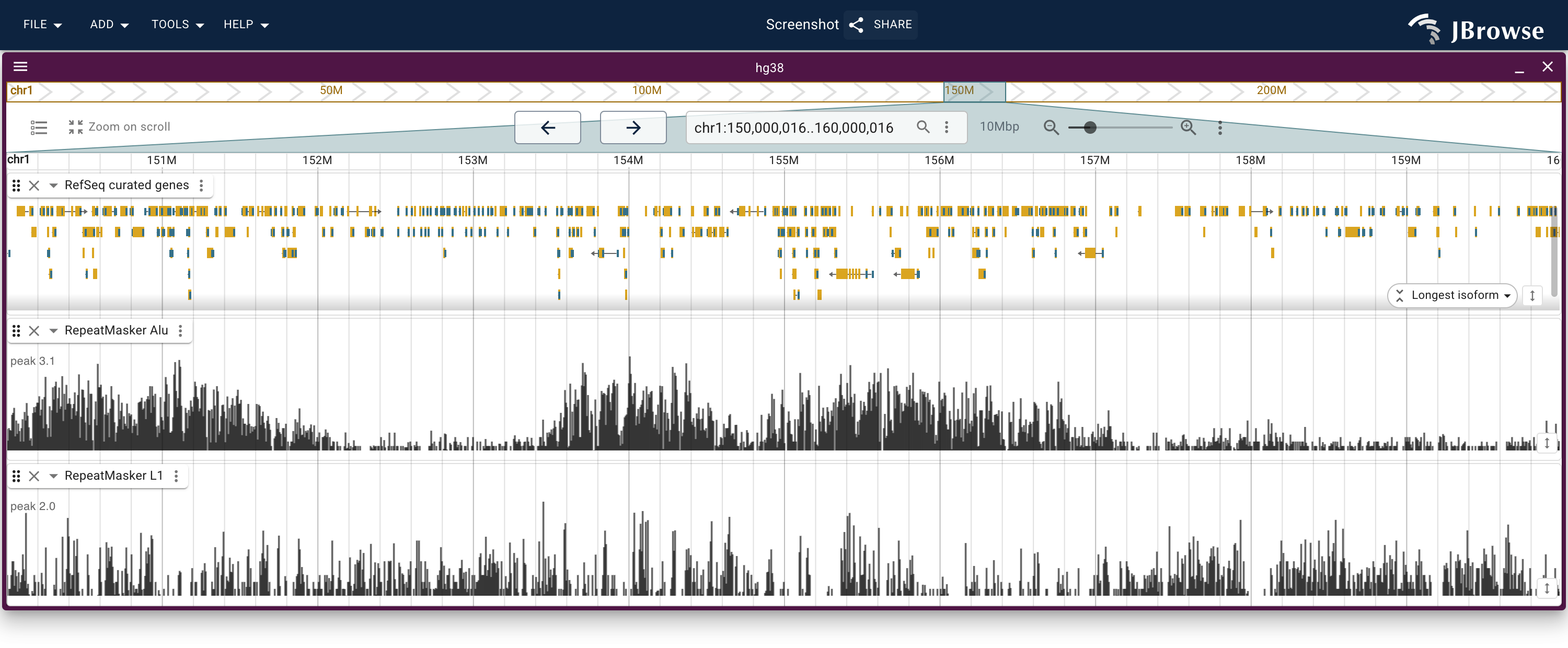

10 Mb of chromosome 1 from 150 to 160 Mb. The RefSeq genes are back as features; the Alu and L1 tracks, still over budget at this width, keep their bands. The Alu band peaks under the densest run of genes, and the L1 band is fullest where the genes thin out. Open this view in JBrowse ↗

The swap is on what a fetch would cost, not on how wide the view is: the gene track and the Alu track are the same width here and only one of them is over budget. A track with a sidecar also carries a Density tier entry in its track menu, with Automatic, Features only and Density only, so the band can be held or dropped by hand.

Checking the band against the file

The bands are counts, so the file answers the same question. Each band names its peak in its corner, and hovering it reads the sidecar's value under the cursor. Take one megabase under the tallest run of the gene band, at 155 Mb, and one under a trough, at 60 Mb, and count what falls in each. A gene's transcripts and exons carry Parent=, so the gene line drops them and counts each gene once:

tabix genes.gff.gz chr1:155,000,000-156,000,000 | grep -vc 'Parent='
tabix Alu.bed.gz chr1:155,000,000-156,000,000 | wc -l
tabix L1.bed.gz chr1:155,000,000-156,000,000 | wc -l

window, chr1	genes	Alu	L1	simple repeats
155 to 156 Mb	49	1298	254	269
60 to 61 Mb	4	146	295	235

The gene count runs with the Alu count and against the L1 count, and the simple repeats come out about the same in both, which is the shape the four bands drew.

Reproduce it end to end

Every step above is wrapped in one script, build_gene_density.sh:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_gene_density.sh
bash build_gene_density.sh                # builds ./gene_density_build/jbrowse2
npx --yes serve gene_density_build/jbrowse2 # then open the printed URL

It fetches the two UCSC tables and the reference lengths, cuts the RepeatMasker table into the three family BEDs, builds a sidecar for each of the four files, and writes a JBrowse with the four tracks. The tools it needs are the ones under Prerequisites.

References

Lander et al. (2001). Initial sequencing and analysis of the human genome
Smit, Hubley and Green (2013-2015). RepeatMasker Open-4.0

Feedback on this tutorial is welcome: contact us.
