A grammar of graphics over a BED (RepeatMasker Alu age)

LinearMarkDisplay is a grammar of graphics over a track: each entry in marks names a shape, a transform list and an encoding from feature fields to channels, so a numeric column of any feature file becomes a plot with a JSON entry and no code. Here the file is RepeatMasker's Alu rows, whose divergence column is an age, and the plots ask where the young copies sit. The mark display is experimental, and its config shape may change.

Prerequisites

a JBrowse to open the figures' sessions in (Web or Desktop); every file here is a URL, so nothing needs hosting to read along
htslib (bgzip, tabix), for the check at the end and for preparing your own file
Node.js and the JBrowse CLI, for jbrowse make-density
python3, standard library only, for the per-megabase counts
bedGraphToBigWig from the UCSC utilities, which make-density runs

Where the data comes from

UCSC's hg38 RepeatMasker table, rehosted with the Alu rows cut out:

RepeatMasker, UCSC's rmsk table as BED with a column header: https://jbrowse.org/ucsc/hg38/rmsk.bed.gz
the Alu rows the figures open, with .tbi and .density.bw beside it: https://jbrowse.org/demos/gene_density/Alu.bed.gz
the per-megabase counts and shares, with .tbi beside it: https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz
reference lengths, for the sidecar's bigWig header: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.chrom.sizes
the sequence: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.2bit

A column that is an age

RepeatMasker's milliDiv column is a copy's divergence from its subfamily consensus in tenths of a percent, which grows with time, so it is an age. The subfamily name (AluJ, then AluS, then AluY, still inserting) is a coarser reading of the same thing. Any file works given BED-like rows, bgzipped and tabix-indexed, with a # header naming the columns.

Each copy's divergence at a locus

A bar per feature with milliDiv on y. A formula step writes the name's first four characters into a lineage field, and a categorical domain fixes the legend order and colours.

Config file CLI (add-track-json) JBrowse Desktop

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        }
      ]
    }
  ]
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        }
      ]
    }
  ]
}

Open it on a few tens of kilobases of 1q21.

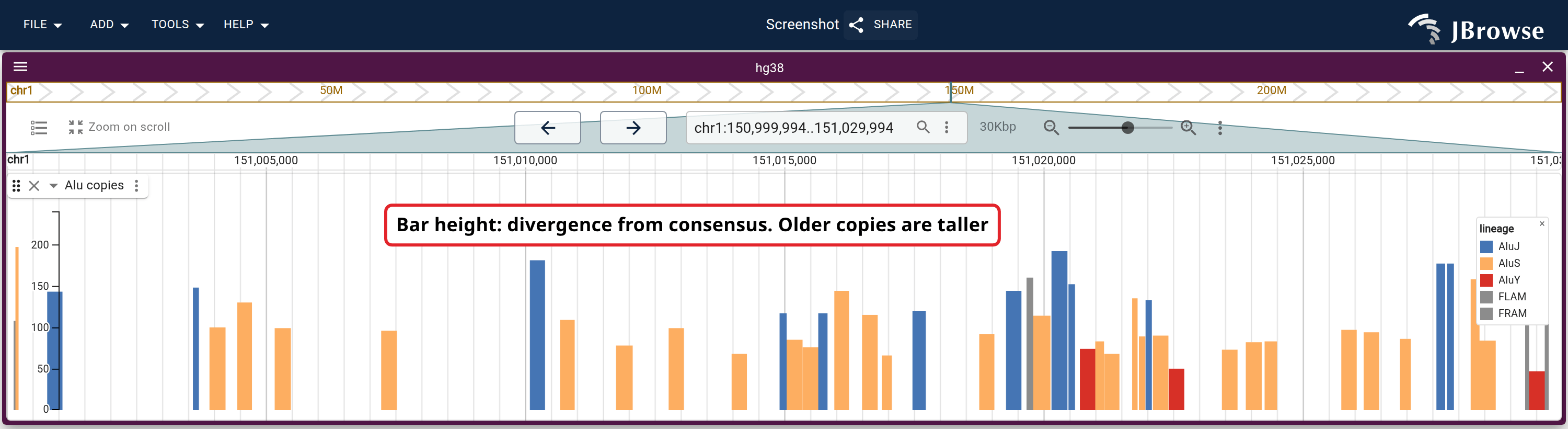

Alu copies over a window of 1q21, one bar per copy with its divergence from its consensus as the height and its lineage as the colour. The AluY bars are the shortest in the window and the AluJ bars the tallest, with AluS between; the fossil monomers stand with AluJ. Open this view in JBrowse ↗

maxBpPerPx stops the mark drawing once the view is wider than that. Hover a bar for its values; click it to open the row.

Zooming out: copies per bin

Zoomed out a bar per copy is under a pixel wide, so a second mark takes over at minBpPerPx: a bin step with "step": "auto" snaps each copy to a bin, an aggregate counts them, and the bar plots the count. A third mark does the same over the copies a filter admits, in AluY's colour.

"marks": [
  {
    "shape": "bar",
    "transform": [
      { "type": "formula", "expr": "jexl:substring(feature.name, 0, 4)", "as": ["lineage"] }
    ],
    "encoding": {
      "y": "milliDiv",
      "color": { "field": "lineage", "scale": "categorical" }
    },
    "maxBpPerPx": 100
  },
  {
    "shape": "bar",
    "transform": [
      { "type": "bin", "step": "auto" },
      { "type": "aggregate", "groupby": ["start", "end"], "ops": [{ "op": "count" }] }
    ],
    "encoding": { "y": "count", "color": "#c0c0c0" },
    "minBpPerPx": 100
  },
  {
    "shape": "bar",
    "transform": [
      { "type": "filter", "expr": "jexl:startsWith(feature.name, 'AluY')" },
      { "type": "bin", "step": "auto" },
      { "type": "aggregate", "groupby": ["start", "end"], "ops": [{ "op": "count" }] }
    ],
    "encoding": { "y": "count", "color": "#d73027" },
    "minBpPerPx": 100
  }
]

The three marks share one fetch and one y-axis; only the marks in range draw. The AluY strip is too thin to read against a total that swings several fold, so the next sections plot the share instead.

The whole chromosome: past the fetch budget

Zoomed to the whole chromosome the fetch is over budget. A density sidecar, a bigWig of feature starts per kilobase, takes over:

# writes Alu.bed.density.bw beside the input, in 1 kb bins
# --assembly reads the reference lengths off the FASTA's .fai;
#   --chrom-sizes takes a two-column name and length table instead
jbrowse make-density Alu.bed.gz --assembly hg38.fa

The adapter gains a densityAdapter and the count mark gains "source": "density", so past the budget it draws the sidecar's bins instead.

Config file CLI (add-track-json) JBrowse Desktop

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.density.bw"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        },
        {
          "shape": "bar",
          "source": "density",
          "transform": [
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#c0c0c0" },
          "minBpPerPx": 100
        },
        {
          "shape": "bar",
          "transform": [
            {
              "type": "filter",
              "expr": "jexl:startsWith(feature.name, 'AluY')"
            },
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#d73027" },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.density.bw"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        },
        {
          "shape": "bar",
          "source": "density",
          "transform": [
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#c0c0c0" },
          "minBpPerPx": 100
        },
        {
          "shape": "bar",
          "transform": [
            {
              "type": "filter",
              "expr": "jexl:startsWith(feature.name, '\''AluY'\'')"
            },
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#d73027" },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "alu_age",
  "name": "Alu copies",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi"
      }
    },
    "densityAdapter": {
      "type": "BigWigAdapter",
      "bigWigLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.density.bw"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_age-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:substring(feature.name, 0, 4)",
              "as": ["lineage"]
            }
          ],
          "encoding": {
            "y": "milliDiv",
            "color": {
              "field": "lineage",
              "scale": "categorical",
              "domain": ["AluJ", "AluS", "AluY", "FLAM", "FRAM"],
              "palette": ["#4575b4", "#fdae61", "#d73027", "#8c8c8c", "#8c8c8c"]
            }
          },
          "maxBpPerPx": 100
        },
        {
          "shape": "bar",
          "source": "density",
          "transform": [
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#c0c0c0" },
          "minBpPerPx": 100
        },
        {
          "shape": "bar",
          "transform": [
            {
              "type": "filter",
              "expr": "jexl:startsWith(feature.name, 'AluY')"
            },
            { "type": "bin", "step": "auto" },
            {
              "type": "aggregate",
              "groupby": ["start", "end"],
              "ops": [{ "op": "count" }]
            }
          ],
          "encoding": { "y": "count", "color": "#d73027" },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}

The track menu's Density band entry holds or forces the swap.

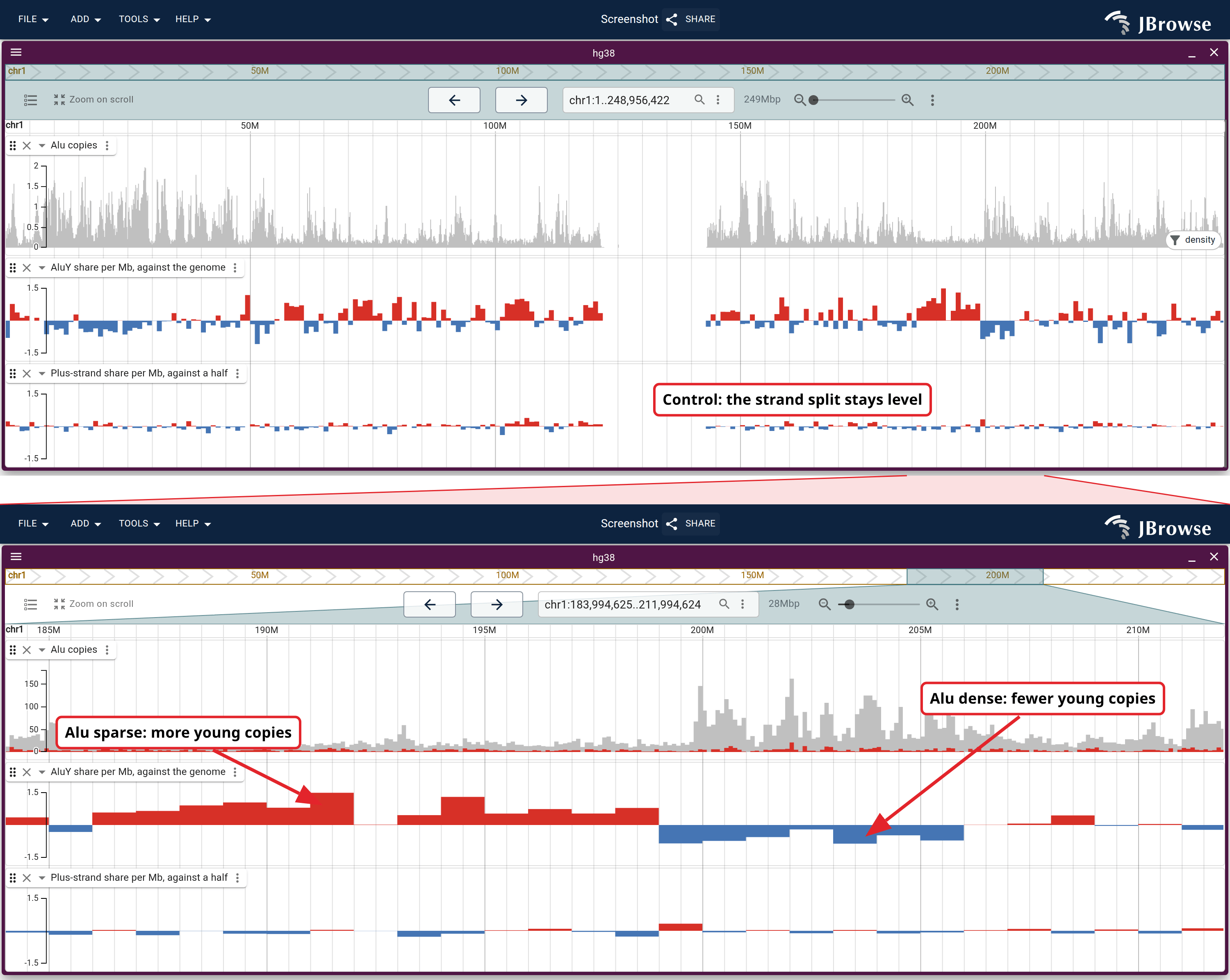

A script computes the share per megabase and writes it as a BED with two log2 columns: the young share against the genome-wide share, and the plus-strand share against a half, as the control.

# columns: copies, young, plus, youngShare, youngLog2, strandLog2, one row per
# 1 Mb bin holding at least 50 copies; prints the rank correlation of each share
# against copies per bin
python3 alu_young_share.py Alu.bed.gz Alu.young_share.bed AluY
bgzip -f Alu.young_share.bed
tabix -f -p bed Alu.young_share.bed.gz

Each column is one mark track. A jexl colour paints the two directions apart, and both tracks pin the same domain.

Config file CLI (add-track-json) JBrowse Desktop

{
  "type": "FeatureTrack",
  "trackId": "alu_young_share",
  "name": "AluY share per Mb, against the genome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_young_share-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "encoding": {
            "y": { "field": "youngLog2", "domain": ["-1.5", "1.5"] },
            "color": "jexl:feature.youngLog2 > 0 ? '#d73027' : '#4575b4'"
          }
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_young_share",
  "name": "AluY share per Mb, against the genome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_young_share-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "encoding": {
            "y": { "field": "youngLog2", "domain": ["-1.5", "1.5"] },
            "color": "jexl:feature.youngLog2 > 0 ? '\''#d73027'\'' : '\''#4575b4'\''"
          }
        }
      ]
    }
  ]
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "alu_young_share",
  "name": "AluY share per Mb, against the genome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/code/jb2/main/test_data/alu_age/Alu.young_share.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_young_share-LinearMarkDisplay",
      "marks": [
        {
          "shape": "bar",
          "encoding": {
            "y": { "field": "youngLog2", "domain": ["-1.5", "1.5"] },
            "color": "jexl:feature.youngLog2 > 0 ? '#d73027' : '#4575b4'"
          }
        }
      ]
    }
  ]
}

The strand track is the same config with strandLog2 in both places.

Top, chromosome 1 end to end: Alu copies from the density sidecar, the AluY share per megabase against the genome-wide share, and the plus-strand share against a half. Under the wedge, the same three tracks over a stretch where Alu-sparse megabases meet Alu-dense ones, with the copies now counted per bin in grey and AluY in red. Open in JBrowse: Chromosome 1 ↗ · The stretch under the wedge ↗

Where Alu is sparse the young share runs red, where it is dense it turns blue, and the strand lane stays level across both.

Is the pattern more than noise

The script prints the Spearman rank correlation of each share against copies per megabase, across the genome:

share, per megabase	bins	Spearman rho	p
AluY share	2873	-0.688	< 1e-300
plus-strand share	2873	0.003	0.87

The young share falls as the copies rise, and the control shows no trend.¹

Checking the bars against the rows

Read the first figure's window out of the file:

tabix https://jbrowse.org/demos/gene_density/Alu.bed.gz chr1:151,000,000-151,030,000 |
  awk -F'\t' '{ l = substr($4, 1, 4); n[l]++; s[l] += $12 }
    END { for (l in n) printf "%s\t%d copies\tmean milliDiv %.0f\n", l, n[l], s[l] / n[l] }'

lineage	copies	mean milliDiv
AluY	3	57
AluS	30	100
FLAM	4	140
AluJ	12	150

And count one red megabase and one blue one:

tabix https://jbrowse.org/demos/gene_density/Alu.bed.gz chr1:191,000,001-192,000,000 |
  awk -F'\t' '$2 >= 191000000 && $4 ~ /^Alu[JSY]/ { n++; y += ($4 ~ /^AluY/) }
    END { print n " copies, " y " AluY" }'

megabase, chr1	Alu copies	AluY
191 to 192 Mb	161	55
203 to 204 Mb	690	47

The dense megabase holds several times the copies and fewer AluY, which is the blue bar.

Reproduce it end to end

Every step above is wrapped in one script, build_alu_age.sh:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_alu_age.sh
bash build_alu_age.sh                     # builds ./alu_age_build/jbrowse2
npx --yes serve alu_age_build/jbrowse2    # then open the printed URL

With no arguments it builds the tracks above over UCSC's table. Given your own RepeatMasker BED, bash build_alu_age.sh rmsk.bed.gz genome.fa builds them over your file, and FAMILY and YOUNG pick another family and its youngest lineage.

References

Batzer MA, Deininger PL. Alu repeats and human genomic diversity. Nature Reviews Genetics 3:370-379 (2002), the subfamily lineages and their ages.
Lander et al. (2001). Initial sequencing and analysis of the human genome, where the distribution of young against old Alu copies along the genome was first described.
Smit, Hubley and Green (2013-2015). RepeatMasker Open-4.0

Notes

The page does not call individual megabases significant. Insertions cluster, so the copies per megabase scatter several times more widely than independent copies would, and a per-megabase test that assumed independence would flag most of the genome. ↩

Feedback on this tutorial is welcome: contact us.

A grammar of graphics over a BED (RepeatMasker Alu age)

Prerequisites#

Where the data comes from#

A column that is an age#

Each copy's divergence at a locus#

Zooming out: copies per bin#

The whole chromosome: past the fetch budget#

The young share per megabase#

Is the pattern more than noise#

Checking the bars against the rows#

Reproduce it end to end#

See also#

References#

Notes

Prerequisites

Where the data comes from

A column that is an age

Each copy's divergence at a locus

Zooming out: copies per bin

The whole chromosome: past the fetch budget

The young share per megabase

Is the pattern more than noise

Checking the bars against the rows

Reproduce it end to end

See also

References
